BC-CTP-212110
ActiveBoxco

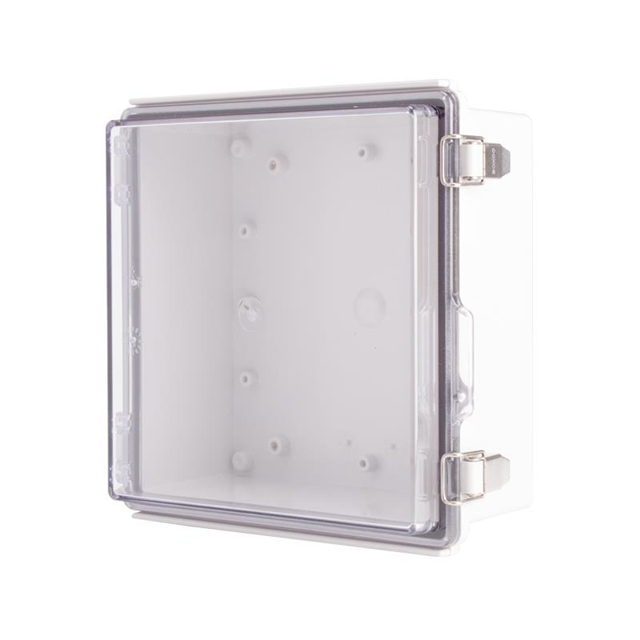

BOX PLASTIC CLR 8.27"L X 8.27"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC-CTP-212110
ActiveBoxco
BOX PLASTIC CLR 8.27"L X 8.27"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BC-CTP-212110 | BC-CTP Series |
|---|---|---|
| Area (L x W) | 68.4 in² | 16.7 - 244 in˛ |
| Area (L x W) | 441 cm˛ | 108 - 1575 cm² |
| Color | Light Gray, Clear Cover | Light Gray, Clear Cover |
| Container Type | Box | Box |
| Design | Stainless Steel Latch, Hinged Door | Stainless Steel Latch, Hinged Door |
| Features | Flame Retardant, Hinged, Lockable, Sealing Gasket, Latches | Flame Retardant, Hinged, Lockable, Sealing Gasket, Latches |
| Height | - | 150 mm |
| Height [z] | 100 mm | 5.906 - 180 mm |
| Height [z] | 3.937 in | 2.756 - 7.087 in |
| Material | Plastic, Polycarbonate/Fiberglass | Plastic, Polycarbonate/Fiberglass |
| Material Flammability Rating | UL94 V-0, UL94 5VA, UL94 HB | UL94 V-0, UL94 5VA, UL94 HB |
| Ratings | NEMA 6, IP66, UL 508A, NEMA 4X, IP67 | NEMA 6, IP66, UL 508A, NEMA 4X, IP67 |
| Size / Dimension [x] | 8.268 in | 4.724 - 17.717 in |
| Size / Dimension [x] | 210 mm | 120 - 450 mm |
| Size / Dimension [y] | 8.268 in | 3.543 - 13.78 " |
| Size / Dimension [y] | 210 mm | 90 - 350 mm |
| Thickness | - | 0.146 in |
| Thickness | - | 3.7 mm |
BC-CTP Series
BOX PLAS CLEAR 11.81"L X 7.87"W
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Container Type | Features | Height [z] | Height [z] | Material Flammability Rating | Design | Area (L x W) | Area (L x W) | Material | Ratings | Color | Thickness | Thickness | Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Boxco BC-CTP-203018 | 200 mm | 7.874 " | 300 mm | 11.811 in | Box | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | 180 mm | 7.087 in | UL94 5VA, UL94 HB, UL94 V-0 | Hinged Door, Stainless Steel Latch | 600 cm² | 93 in˛ | Plastic, Polycarbonate/Fiberglass | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Clear Cover, Light Gray | |||
Boxco BC-CTP-212110 | 210 mm | 8.268 in | 210 mm | 8.268 in | Box | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | 100 mm | 3.937 in | UL94 5VA, UL94 HB, UL94 V-0 | Hinged Door, Stainless Steel Latch | 441 cm˛ | 68.4 in² | Plastic, Polycarbonate/Fiberglass | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Clear Cover, Light Gray | |||
Boxco BC-CTP-354520 | 350 mm | 13.78 in | 450 mm | 17.717 in | Box | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | UL94 5VA, UL94 HB, UL94 V-0 | Hinged Door, Stainless Steel Latch | 1575 cm˛ | 244 in˛ | Plastic, Polycarbonate/Fiberglass | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Clear Cover, Light Gray | 0.146 in | 3.7 mm | |||
Boxco BC-CTP-283813 | 280 mm | 11.024 " | 380 mm | 14.961 in | Box | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | 130 mm | 5.118 in | UL94 5VA, UL94 HB, UL94 V-0 | Hinged Door, Stainless Steel Latch | 1064 cm˛ | 165 in˛ | Plastic, Polycarbonate/Fiberglass | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Clear Cover, Light Gray | |||
Boxco BC-CTP-203015 | 200 mm | 7.874 " | 300 mm | 11.811 in | Box | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | 5.906 in | UL94 5VA, UL94 HB, UL94 V-0 | Hinged Door, Stainless Steel Latch | 600 cm² | 93 in˛ | Plastic, Polycarbonate/Fiberglass | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Clear Cover, Light Gray | 150 mm | |||
Boxco BC-CTP-091207 | 90 mm | 3.543 in | 120 mm | 4.724 " | Box | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | 70 mm | 2.756 " | UL94 5VA, UL94 HB, UL94 V-0 | Hinged Door, Stainless Steel Latch | 108 cm² | 16.7 in² | Plastic, Polycarbonate/Fiberglass | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | Clear Cover, Light Gray |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.67 | |
Description
General part information
BC-CTP Series
Box Plastic, Polycarbonate/Fiberglass Light Gray, Clear Cover Hinged Door, Stainless Steel Latch 8.268" L x 8.268" W (210.00mm x 210.00mm) X 3.937" (100.00mm)
