MS3122E18-32PX
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3122E18-32PX
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3122E18-32PX | MS3122E18 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets, Receptacle Housing |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | - | Circular |
| Contact Size | - | 20 |
| Contact Type | - | Crimp |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Housing Color | - | Olive Drab |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Note | - | Contacts Not Included |
| Number of Positions | - | 11 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | X | X, W, N, Y |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 18-11 |
| Shell Size - Insert [Max] | 32 | 32 |
| Shell Size - Insert [Min] | 18 | 18 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Type | - | For Female Sockets |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 93.82 | |
| 10 | $ 86.09 | |||
| 25 | $ 82.78 | |||
| 50 | $ 80.02 | |||
| 100 | $ 75.61 | |||
MS3122E18 Series
RECEPT
| Part | Contact Material | Fastening Type | Termination | Qualification | Orientation | Connector Type | Ingress Protection | Shielding | Primary Material | Insert Material | Shell Finish | Current Rating (Amps) | Color | Contact Finish - Mating | Shell Material | Grade | Voltage Rating | Mounting Feature | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Note | Housing Color | Contact Size | Type | Contact Type | Contact Shape | Number of Positions | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3122E18-32PY | |||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E18-11P | |||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E18-32PX | Copper Alloy | Bayonet Lock | Crimp | MIL-DTL-26482 Series I | X | Male Pins, Receptacle | Environment Resistant | Unshielded | Metal | Neoprene | Olive Drab Chromate over Cadmium | 7.5 A | Olive Drab | Gold | Aluminum | Military | 600 VAC | Flange | 32 | 18 | -55 °C | 125 °C | Aerospace, Industrial, Instrumentation, Mass Transit, Military | ||||||||
Amphenol Industrial Operations MS3122E18-11PW | |||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E18-30S | |||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E18-32SW | Copper Alloy | Bayonet Lock | Crimp | MIL-DTL-26482 Series I | W | Receptacle, Female Sockets | Environment Resistant | Unshielded | Metal | Neoprene | Olive Drab Chromate over Cadmium | Olive Drab | Gold | Aluminum | Military | Flange | 32 | 18 | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | ||||||||||
Amphenol Industrial Operations MS3122E18-11PX | |||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E18-32P(LC) | |||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E18-32SLC | Bayonet Lock | MIL-DTL-26482 Series I | N | Receptacle Housing | Environment Resistant | Unshielded | Neoprene | Chromate over Cadmium | Aluminum | Military | Flange | 32 | 18 | -55 °C | 125 °C | Contacts Not Included | Olive Drab | 20 | For Female Sockets | Crimp | Circular | ||||||||||
Amphenol Industrial Operations MS3122E18-32S | Copper Alloy | Bayonet Lock | Crimp | MIL-DTL-26482 Series I | N | Receptacle, Female Sockets | Environment Resistant | Unshielded | Metal | Neoprene | Olive Drab Chromate over Cadmium | Olive Drab | Gold | Aluminum | Military | Flange | 32 | 18 | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military |
Description
General part information
MS3122E18 Series

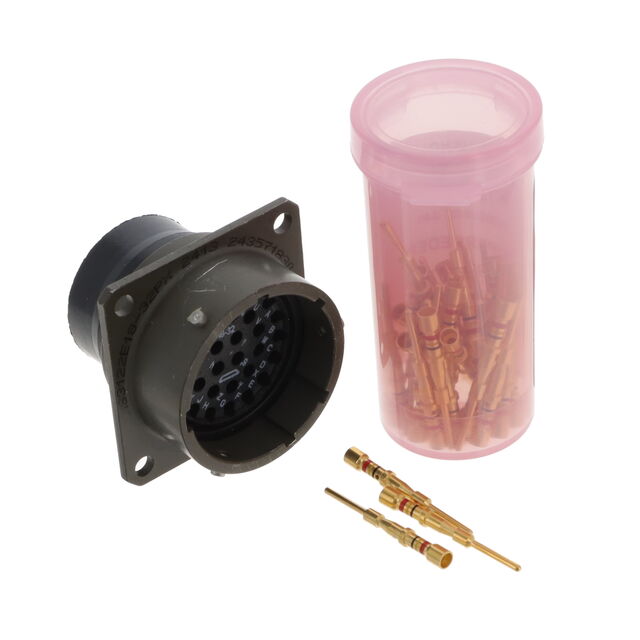

32 Position Circular Connector Receptacle, Male Pins Crimp
