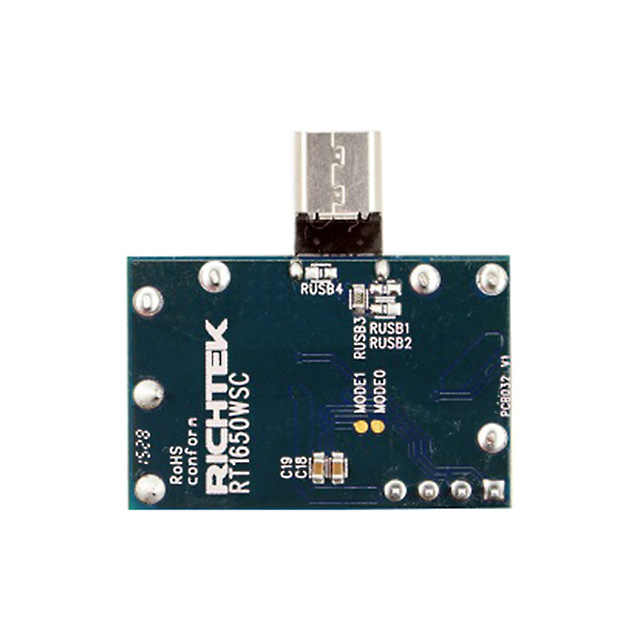

EVB_RT1650WSC

Active

Richtek USA Inc.

EVAL MODULE FOR RT1650WSC

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT1650WSC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RT1650 Wireless Power Supply/Charging Power Management Evaluation Board

Technical documentation and resources

Specification	EVB_RT1650WSC	RT1650 Series

Applications	-	Wireless Power Receiver
Current - Supply	-	8 mA
Embedded	False	False
Function	Wireless Power Supply/Charging	Wireless Power Supply/Charging
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	WLCSP, 48-XFBGA
Primary Attributes	Receiver	Receiver
Secondary Attributes	On-Board LEDs	On-Board LEDs
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	48-WLCSP (3x3.4)
Type	Power Management	Power Management
Utilized IC / Part	RT1650	RT1650
Voltage - Supply	-	10 V
Voltage - Supply	-	4 - 5 V

Part	Function	Type	Utilized IC / Part	Primary Attributes	Secondary Attributes	Supplied Contents	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Current - Supply
Richtek USA Inc. EVB_RT1650WSC	Wireless Power Supply/Charging	Power Management	RT1650	Receiver	On-Board LEDs	Board(s)
Richtek USA Inc. RT1650WSC							48-XFBGA, WLCSP	85 °C	-40 °C	Surface Mount	48-WLCSP (3x3.4)	10 V	5 V	Wireless Power Receiver
Richtek USA Inc. RT1650BWSC-2							48-XFBGA, WLCSP	85 °C	-40 °C	Surface Mount	48-WLCSP (3x3.4)	10 V	4 V	Wireless Power Receiver	8 mA
