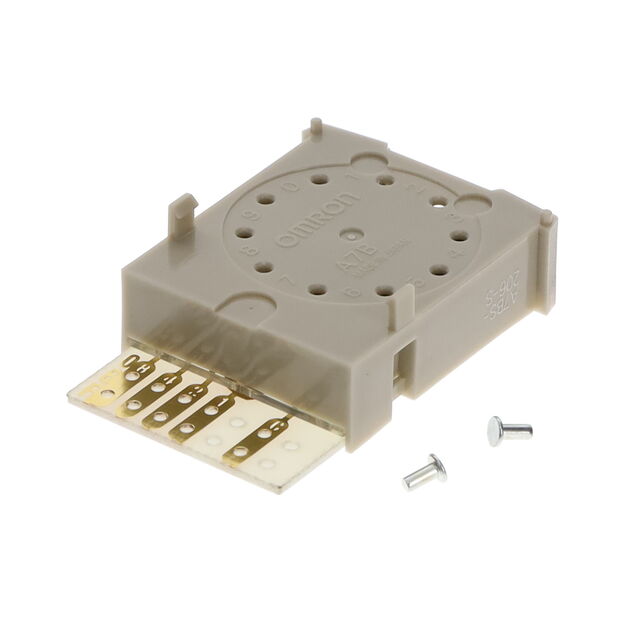

A7BS-206-S

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.1A 50V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A7BS-206-S

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.1A 50V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.20
		10	$ 8.26
		25	$ 7.57
		100	$ 7.47

Description

General part information

A7B Series

Thumbwheel Switch BCD 0.1A @ 50VAC/28VDC Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

How to Read Date Codes

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A7BS-206-S	A7B Series

	-	-
Accessory Type	-	End Cap, Spacer, Connector
Actuator Type	Pushwheel	Pushwheel
Color	Light Gray	Light Gray, Black
Contact Rating @ Voltage [x]	28 VDC, 50 VAC, 0.1 A	0.1 - 50 VDC
Depth Behind Flange	-	43.5 mm
Depth Behind Flange [z]	32.5 mm	32.5 mm
Display Characters - Height [z]	4.8 mm	3.2 - 4.8 mm
Display Characters - Height [z]	0.189 in	0.126 - 0.189 in
Electrical Life	50000 Cycles	50000 Cycles
End Caps	Sold Separately	Sold Separately
Features	External Stoppers	Diode, Locking Actuator, External Stoppers, Internal Stoppers, Red Characters
For Use With/Related Products	-	Omron A7B Series, A7BS, A7BL Series, SW266 ~ SW269-ND
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Number of Sections	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Code	BCD	BCD, SPDT, Hexadecimal
Read Out	-	+/-
Read Out	-	F, 9
Read Out	-	0, A
Read Out [Max]	9	9
Read Out [Min]	0	0
Section Width [x]	8 mm	8 mm
Section Width [x]	0.315 in	0.315 in
Termination Style	Solder Pad, Card Edge	Card Edge/Solder Pad with Component Mounting, Solder Pad, Card Edge

A7B Series

SWITCH THUMB BCD 0.1A 50V

Part	Termination Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Mounting Type	Number of Sections	Display Characters - Height [z]	Display Characters - Height [z]	Depth Behind Flange	Section Width [x]	Section Width [x]	Output Code	End Caps	Read Out [Min]	Read Out [Max]	Contact Rating @ Voltage [x]	Actuator Type	Color	Read Out	Depth Behind Flange [z]	Accessory Type	For Use With/Related Products	Read Out [Max]	Read Out [Min]
Omron Electronics Inc-EMC Div A7BS-207-D	Card Edge/Solder Pad with Component Mounting	Diode	-10 °C	65 °C	50000 Cycles	Panel Mount, Snap-In	1	4.8 mm	0.189 in	43.5 mm	8 mm	0.315 in	BCD	Sold Separately	0	9	0.1 A, 28 VDC, 50 VAC	Pushwheel	Light Gray
Omron Electronics Inc-EMC Div A7BS-207-PM	Card Edge/Solder Pad with Component Mounting		-10 °C	65 °C	50000 Cycles	Panel Mount, Snap-In	1	4.8 mm	0.189 in	43.5 mm	8 mm	0.315 in	SPDT	Sold Separately			0.1 A, 28 VDC, 50 VAC	Pushwheel	Light Gray	+/-
Omron Electronics Inc-EMC Div A7BL-206-1	Card Edge, Solder Pad	Locking Actuator	-10 °C	65 °C	50000 Cycles	Panel Mount, Snap-In	1	4.8 mm	0.189 in		8 mm	0.315 in	BCD	Sold Separately	0	9	0.1 A, 28 VDC, 50 VAC	Pushwheel	Black		32.5 mm
Omron Electronics Inc-EMC Div A7BS-206-S	Card Edge, Solder Pad	External Stoppers	-10 °C	65 °C	50000 Cycles	Panel Mount, Snap-In	1	4.8 mm	0.189 in		8 mm	0.315 in	BCD	Sold Separately	0	9	0.1 A, 28 VDC, 50 VAC	Pushwheel	Light Gray		32.5 mm
Omron Electronics Inc-EMC Div A7BS-207-S05-1	Card Edge/Solder Pad with Component Mounting	Internal Stoppers	-10 °C	65 °C	50000 Cycles	Panel Mount, Snap-In	1	4.8 mm	0.189 in	43.5 mm	8 mm	0.315 in	BCD	Sold Separately	0	9	0.1 A, 28 VDC, 50 VAC	Pushwheel	Black
Omron Electronics Inc-EMC Div A7BS-206-10-1	Card Edge, Solder Pad	Red Characters	-10 °C	65 °C	50000 Cycles	Panel Mount, Snap-In	1	4.8 mm	0.189 in		8 mm	0.315 in	BCD	Sold Separately	0	9	0.1 A, 28 VDC, 50 VAC	Pushwheel	Black		32.5 mm
Omron Electronics Inc-EMC Div A7B-M																						End Cap	Omron A7B Series
Omron Electronics Inc-EMC Div A7B-PU-1																						Spacer	A7BS, A7BL Series
Omron Electronics Inc-EMC Div A7BS-254-1	Card Edge, Solder Pad		-10 °C	65 °C	50000 Cycles	Panel Mount, Snap-In	1	3.2 mm	0.126 "		8 mm	0.315 in	Hexadecimal	Sold Separately			0.1 A, 28 VDC, 50 VAC	Pushwheel	Black		32.5 mm			9, F	0, A
Omron Electronics Inc-EMC Div A7BPC1
