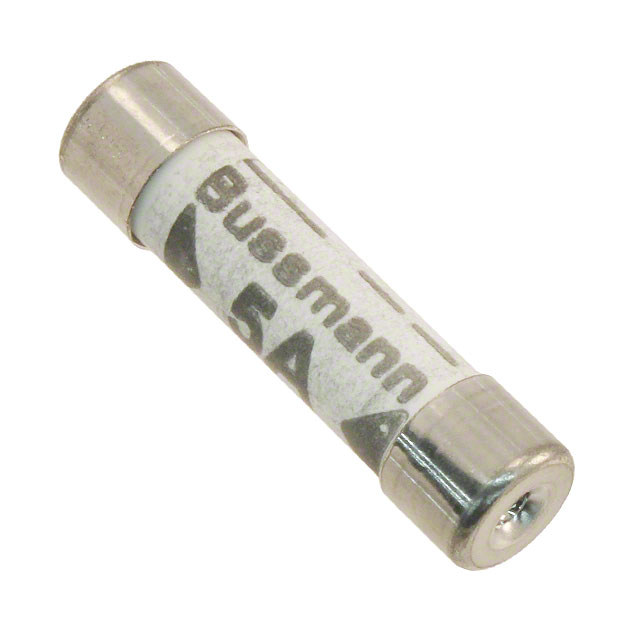

BK1/TDC180-5A
ActiveEaton - Electronics Division
FUSE CARTRIDGE 5A 240VAC 8AG
BK1/TDC180-5A
ActiveEaton - Electronics Division
FUSE CARTRIDGE 5A 240VAC 8AG
Description
General part information
BK1/TDC180-5A
5A 240 VAC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | BK1/TDC180-5A |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | ASTA, CCC |
| Breaking Capacity | 6 kA |
| Current Rating | 5 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package Diameter | 0.25 in |
| Package Length | 25.4 mm, 0.25 in |
| Package Name | 8AG |
| Package Width | 25.4 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.248 in |
| Size / Dimension Length | 1 in |
| Voltage Rating - AC | 240 V |
