XP3A-4654-0750D-R/S
ObsoleteOmron Electronics Inc-EMC Div
CONTACT SPRING LOADED T/H GOLD
XP3A-4654-0750D-R/S
ObsoleteOmron Electronics Inc-EMC Div
CONTACT SPRING LOADED T/H GOLD
Description
General part information
XP3A-4654-0750D-R/S

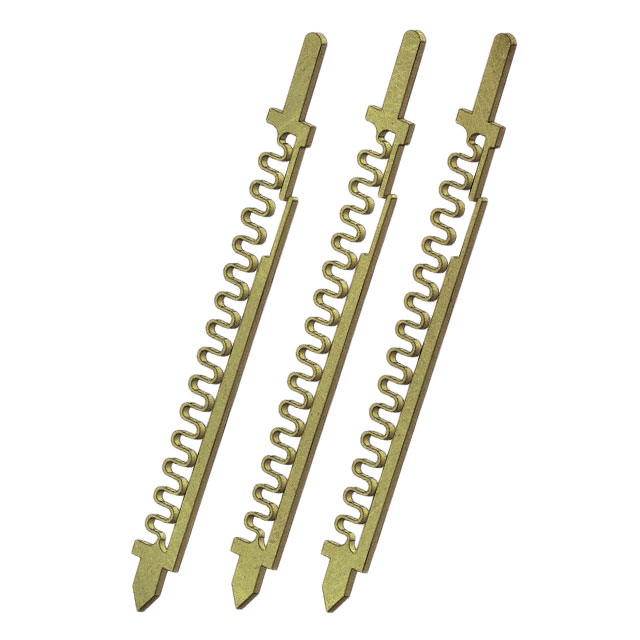

Contact Spring Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | XP3A-4654-0750D-R/S |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 40 µin |
| Contact Material | Nickel Alloy |
| Contact Type | Probe Pin |
| Current Rating | 0.25 A |
| Maximum Working Height | 0.203 in |
| Mounting Type | Through Hole |
| Operating Force - Initial | 15 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Plunger Diameter (Max) | 0.018 in |
| Plunger Diameter (Min) | 0.003 in |
| Recommended Working Height | 0.183 in |
