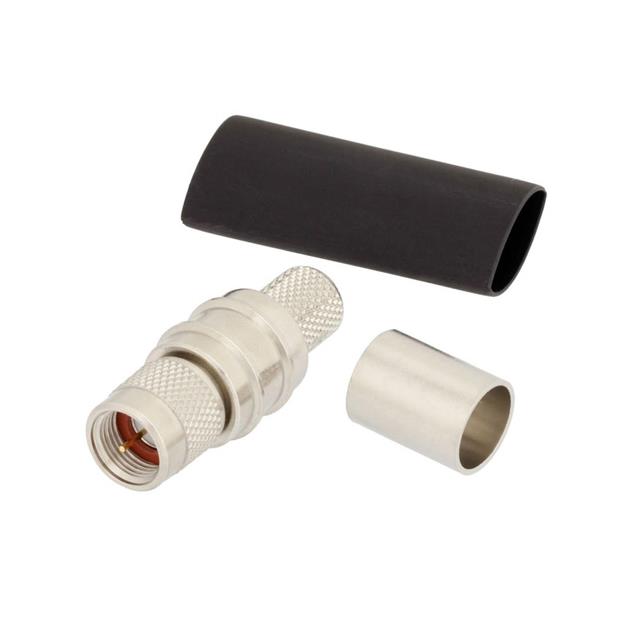

EZ-400-FM-75-LC
ObsoletePasternack
75 OHM F MALE CONNECTOR CRIMP/NO
EZ-400-FM-75-LC
ObsoletePasternack
75 OHM F MALE CONNECTOR CRIMP/NO
Description
General part information
EZ-400-FM-75-LC
F Type Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | EZ-400-FM-75-LC |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | LMR-400 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | F Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 2 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 1000 V |
