B82724J8532N040

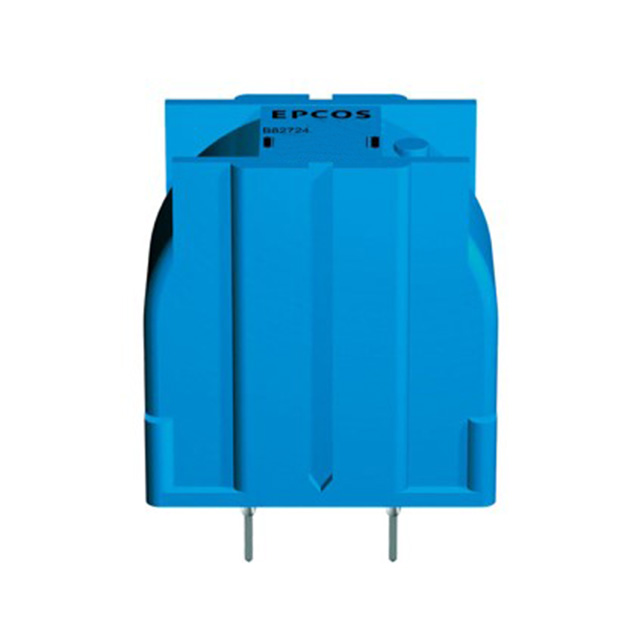

3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole DCR 26mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82724J8532N040 |
|---|---|
| DC Resistance (DCR) (Max) | 26 mOhm |
| DC Resistance (DCR) (Typ) | 26 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.307 in |
| Inductance | 3.3 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.232 in |
| Size / Dimension Width | 0.728 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 800 V |
