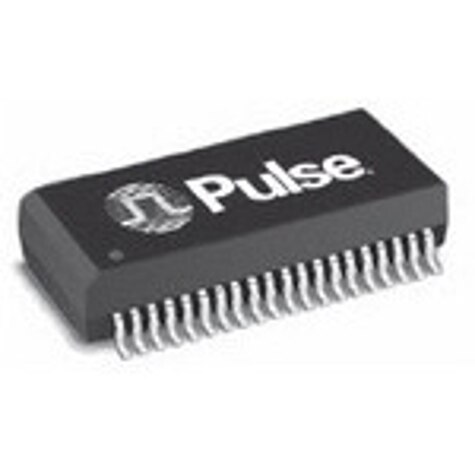

Specification	T1231NLT

Height - Seated (Max)	0.23 in
Inductance	1 mH
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Size / Dimension Length	1.125 in
Size / Dimension Width	0.485 in
Transformer Type	T1, E1 (Quad)
Turns Ratio - Primary (Receiver)	1 CT
Turns Ratio - Primary (Transmitter)	1 CT
Turns Ratio - Secondary (Receiver)	1
Turns Ratio - Secondary (Transmitter)	2.4
Turns Ratio Mode	Receiver, Transmitter
