4326
ActiveAdafruit Industries LLC

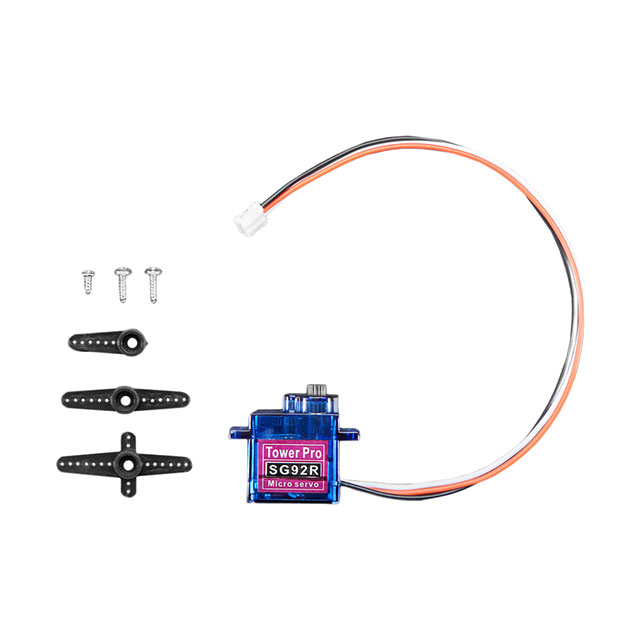

SERVOMOTOR RC 3-6V W/ 3-PIN JST
4326
ActiveAdafruit Industries LLC
SERVOMOTOR RC 3-6V W/ 3-PIN JST
Description
General part information
4326
Positional Rotation DC Motor Servomotor, RC (Hobby) 3 ~ 6VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 4326 |
|---|---|
| Function | RC (Hobby), Servomotor |
| Motor Type | Positional Rotation |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -30 °C |
| Size / Dimension Length | 0.906 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.433 in |
| Termination Style | Wire Leads with Connector |
| Torque - Rated (mNm) | 156.9 mNm |
| Torque - Rated (oz-in) | 22.22 oz-in |
| Type | DC Motor |
| Voltage - Rated (Max) | 6 VDC |
| Voltage - Rated (Min) | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
