0003122022

Obsolete

Molex

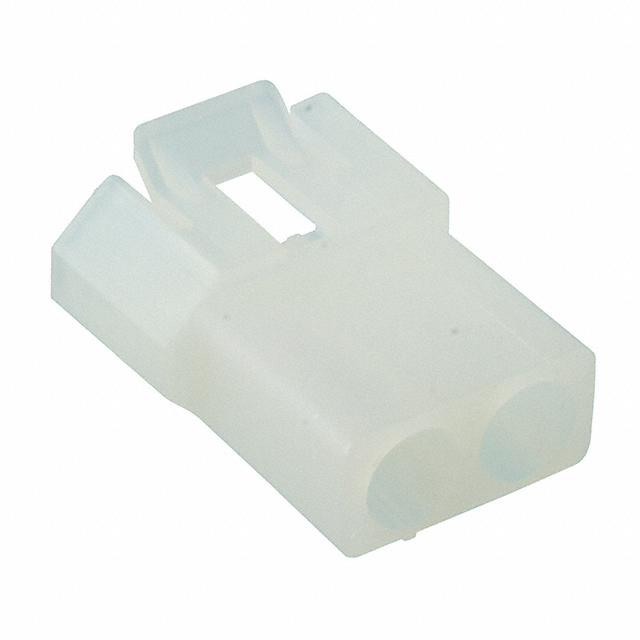

CONN PLUG HSG 2POS 7.11MM

Search across all available documentation for this part.

Obsolete

Molex

CONN PLUG HSG 2POS 7.11MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Rectangular Connectors - Housings Plug Natural 0.280" (7.11mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	0003122022	000312 Series

Color	Natural	Natural
Connector Type	Plug	Plug, Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Non-Gendered	Non-Gendered, Male or Female
Fastening Type	Locking Ramp	Locking Ramp, Latch Lock
Insulation Material	-	Polyamide (PA), Nylon
Mounting Type	-	Free Hanging (In-Line), Panel Mount, Snap-In
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	1 - 4
Number of Rows	1	1
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Pitch [x]	7.11 mm	7.11 - 8.38 mm
Pitch [x]	0.28 in	0.28 - 0.33 in

CONN PLUG HSG 2POS 7.11MM

Part	Fastening Type	Contact Termination	Number of Positions	Connector Type	Color	Contact Type	Number of Rows	Pitch [x]	Pitch [x]	Note	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material
Molex 0003122022	Locking Ramp	Crimp	2	Plug	Natural	Non-Gendered	1	7.11 mm	0.28 in	Contacts Not Included
Molex 0003122046	Locking Ramp	Crimp	4	Plug	Natural	Male or Female	1	8.38 mm	0.33 in	Contacts Not Included	Free Hanging (In-Line)
Molex 0003121016	Latch Lock	Crimp	1	Receptacle	Natural	Male or Female	1			Contacts Not Included	Free Hanging (In-Line)
Molex 0003121046	Latch Lock	Crimp	4	Receptacle	Natural	Male or Female	1	8.38 mm	0.33 in	Contacts Not Included	Free Hanging (In-Line)
Molex 0003122016	Locking Ramp	Crimp	1	Plug	Natural	Male or Female	1			Contacts Not Included	Free Hanging (In-Line)
Molex 0003122045	Locking Ramp	Crimp	4	Plug	Natural	Male or Female	1	8.38 mm	0.33 in	Contacts Not Included	Panel Mount, Snap-In	-40 °C	105 ░C	Nylon, Polyamide (PA)
