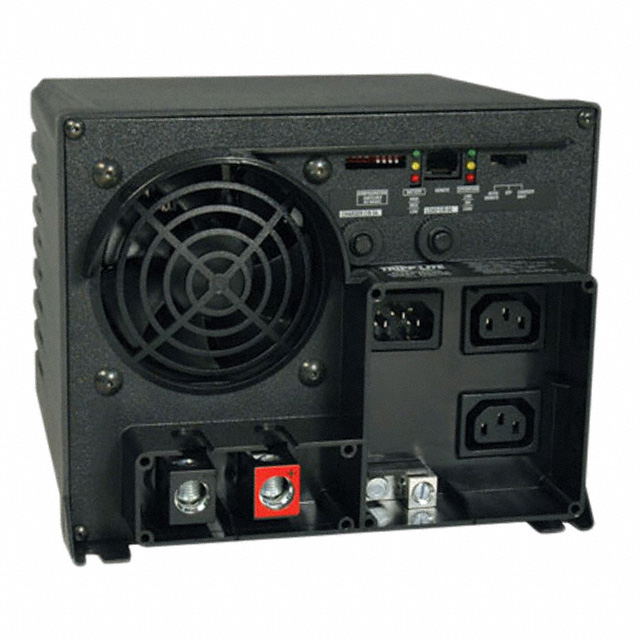

APSX1250
ObsoleteEaton Tripp Lite
INVERTER 1250W 12VDC OR 230VAC
APSX1250
ObsoleteEaton Tripp Lite
INVERTER 1250W 12VDC OR 230VAC
Description
General part information
APSX1250
12VDC, 230VAC Voltage Input 1.25 kW Power Output Continuous Inverter, UPS 2 AC Outlets IEC 320-C13 International
Technical Specifications
Parameters and characteristics for this part
| Specification | APSX1250 |
|---|---|
| AC Outlets (Count) | 2 count |
| Connector - AC Output | IEC 320-C13 |
| Connector - Voltage Input | AC Inlet (IEC-320 C14), Terminals |
| Features | Battery Charger, Auto Power Transfer for UPS Mode |
| Power - Output Continuous | 1.25 kW |
| Power - Output Surge | 2.5 kW |
| Region Utilized | International |
| Remote Capability | Yes |
| Size Height | 7 " |
| Size Length | 9 in |
| Size Width | 8.75 " |
| Type | Inverter, UPS |
| Voltage - Input | 12 V, 230 V |
| Voltage - Output | 230 V |
| Weight | 24 lbs |
