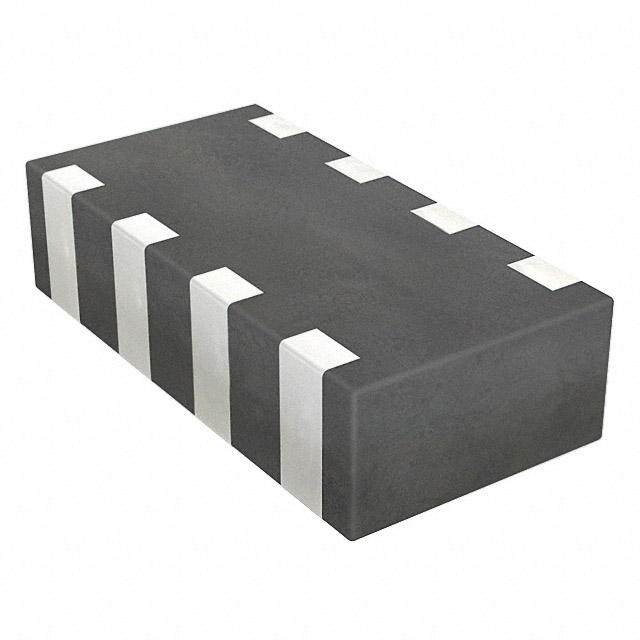

BK32164S241-T

BK32164S241-T

Obsolete
Taiyo Yuden

FERRITE BEAD 240 OHM 1206 4LN

Find alt
BK32164S241-T

BK32164S241-T

Obsolete
Taiyo Yuden

FERRITE BEAD 240 OHM 1206 4LN

Find alt

Description

General part information

BK32164S241-T

240 Ohms @ 100 MHz 4 Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 200mA 300mOhm

Technical Specifications

Parameters and characteristics for this part

SpecificationBK32164S241-T
Current Rating (Max)200 mA
DC Resistance (DCR) (Max)300 mOhm
Height (Max)0.035 in
Impedance240 Ohms
Mounting TypeSurface Mount
Number of Lines4
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Package Name1206
Pad Count8 PC Pad
Size / Dimension Length0.126 in
Size / Dimension Width0.063 in
