CS08144-26M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 26.0000MHZ 10PF SMD
CS08144-26M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 26.0000MHZ 10PF SMD
Description
General part information
CS08144-26M

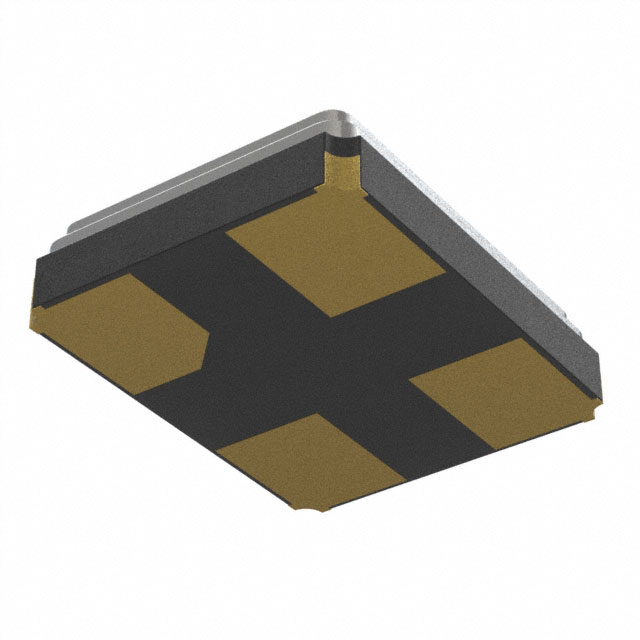

26 MHz Crystal 10pF 60 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CS08144-26M |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohm |
| Frequency | 26 MHz |
| Height - Seated (Max) | 0.02 in |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Type | MHz Crystal |
