2381-1-00-80-00-00-33-0
ActiveMill-Max Manufacturing Corp.

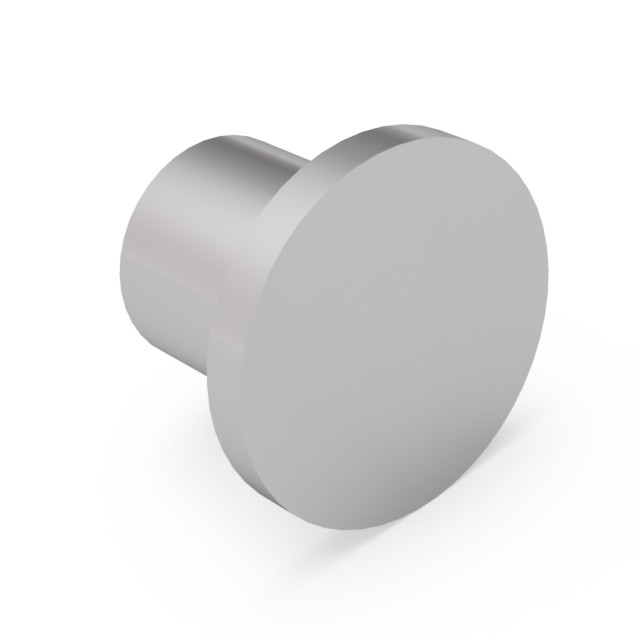

NAIL HEAD PIN
2381-1-00-80-00-00-33-0
ActiveMill-Max Manufacturing Corp.
NAIL HEAD PIN
Description
General part information
2381-1-00-80-00-00-33-0
NAIL HEAD PIN
Technical Specifications
Parameters and characteristics for this part
| Specification | 2381-1-00-80-00-00-33-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 µin |
| Contact Material | Brass Alloy |
| Flange Diameter | 0.08 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.06 in |
| Length - Overall | 0.07 in |
| Mounting Hole Diameter | 0.054 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.05 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
