R7FS7G27H2A01CLK#AC0
ActiveRenesas Electronics Corporation

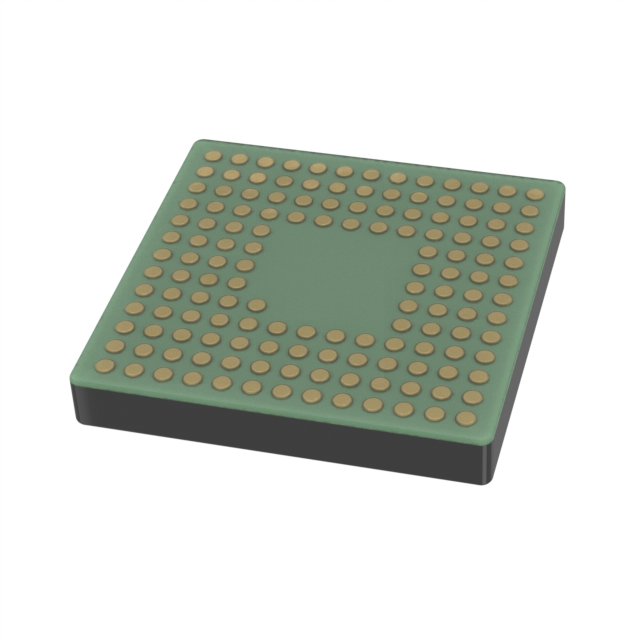

IC MCU 32BIT 4MB FLASH 145TFLGA
Deep-Dive with AI
Search across all available documentation for this part.
R7FS7G27H2A01CLK#AC0
ActiveRenesas Electronics Corporation
IC MCU 32BIT 4MB FLASH 145TFLGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | R7FS7G27H2A01CLK#AC0 | R7FS7G27 Series |
|---|---|---|
| Connectivity | Ethernet, SPI, IrDA, QSPI, SSI, USB, MMC/SD, CANbus, UART/USART, I2C, SCI, EBI/EMI | Ethernet, SPI, IrDA, QSPI, SSI, USB, MMC/SD, CANbus, UART/USART, I2C, SCI, EBI/EMI |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4, ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core, 32-Bit |
| Data Converters | A/D 19x12b, D/A 2x12b | A/D 19x12b, D/A 2x12b, A/D 21x12b SAR, A/D 16x12b SAR |
| Data Converters | - | 2 - 25 b |
| Data Converters | - | 2 - 21 |
| Data Converters | - | 12 b |
| Data Converters | - | 16 |
| EEPROM Size | 64 K | 64 K |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 104 | 70 - 172 |
| Operating Temperature [Max] | 85 °C | 85 - 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 145-TFLGA | 145-TFLGA, 144-LQFP, 176-LQFP, 176-LFBGA, 224-LFBGA, 100-LQFP |
| Peripherals | PWM, POR, LCD, LVD, DMA, WDT | PWM, POR, LCD, LVD, DMA, WDT |
| Program Memory Size | 4 MB | 3 - 4 MB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 640 K | 640 K |
| Speed | 240 MHz | 240 MHz |
| Supplier Device Package | 145-TFLGA (7x7) | 145-TFLGA (7x7), 144-LFQFP (20x20), 176-LFQFP (24x24), 176-LFBGA (13x13), 224-LFBGA (13x13), 100-LFQFP (14x14) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.7 V | 2.7 V |
R7FS7G27 Series
240MHz Arm Cortex-M4 CPU
| Part | EEPROM Size | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Speed | Program Memory Size | Oscillator Type | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Program Memory Type | Peripherals | Core Processor | Supplier Device Package | Connectivity | Core Size | Number of I/O | Data Converters | RAM Size | Mounting Type | Data Converters | Data Converters [x] | Data Converters [custom] | Data Converters [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation R7FS7G27H2A01CLK#AC0 | 64 K | 85 °C | -40 °C | 145-TFLGA | 240 MHz | 4 MB | Internal | 3.6 V | 2.7 V | FLASH | DMA, LCD, LVD, POR, PWM, WDT | ARM® Cortex®-M4 | 145-TFLGA (7x7) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | 32-Bit Single-Core | 104 | A/D 19x12b, D/A 2x12b | 640 K | Surface Mount | ||||
Renesas Electronics Corporation R7FS7G27H3A01CFB#BA0 | 64 K | 105 °C | -40 °C | 144-LQFP | 240 MHz | 4 MB | Internal | 3.6 V | 2.7 V | FLASH | DMA, LCD, LVD, POR, PWM, WDT | ARM® Cortex®-M4F | 144-LFQFP (20x20) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | 32-Bit | 104 | 640 K | Surface Mount | 2, 12 b, 19 | ||||
Renesas Electronics Corporation R7FS7G27G3A01CFC#AA0 | 64 K | 105 °C | -40 °C | 176-LQFP | 240 MHz | 3 MB | Internal | 3.6 V | 2.7 V | FLASH | DMA, LCD, LVD, POR, PWM, WDT | ARM® Cortex®-M4 | 176-LFQFP (24x24) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | 32-Bit Single-Core | 126 | 640 K | Surface Mount | 2, 12 b, 21 | ||||
Renesas Electronics Corporation R7FS7G27G2A01CBG#AC0 | 64 K | 85 °C | -40 °C | 176-LFBGA | 240 MHz | 3 MB | Internal | 3.6 V | 2.7 V | FLASH | DMA, LCD, LVD, POR, PWM, WDT | ARM® Cortex®-M4 | 176-LFBGA (13x13) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | 32-Bit Single-Core | 126 | 640 K | Surface Mount | 2, 12 b, 21 | ||||
Renesas Electronics Corporation R7FS7G27G3A01CFC#BA0 | 64 K | 105 °C | -40 °C | 176-LQFP | 240 MHz | 3 MB | Internal | 3.6 V | 2.7 V | FLASH | DMA, LCD, LVD, POR, PWM, WDT | ARM® Cortex®-M4F | 176-LFQFP (24x24) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | 32-Bit | 126 | A/D 21x12b SAR, D/A 2x12b | 640 K | Surface Mount | ||||
Renesas Electronics Corporation R7FS7G27H2A01CBD#AC0 | 64 K | 85 °C | -40 °C | 224-LFBGA | 240 MHz | 4 MB | Internal | 3.6 V | 2.7 V | FLASH | DMA, LCD, LVD, POR, PWM, WDT | ARM® Cortex®-M4 | 224-LFBGA (13x13) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | 32-Bit Single-Core | 172 | 640 K | Surface Mount | 2, 12 b, 12 b, 25 | ||||
Renesas Electronics Corporation R7FS7G27G3A01CFP#AA0 | 64 K | 105 °C | -40 °C | 100-LQFP | 240 MHz | 3 MB | Internal | 3.6 V | 2.7 V | FLASH | DMA, LCD, LVD, POR, PWM, WDT | ARM® Cortex®-M4 | 100-LFQFP (14x14) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | 32-Bit Single-Core | 70 | 640 K | Surface Mount | 12 b | 16 | |||
Renesas Electronics Corporation R7FS7G27G3A01CFP#BA0 | 64 K | 105 °C | -40 °C | 100-LQFP | 240 MHz | 3 MB | Internal | 3.6 V | 2.7 V | FLASH | DMA, LCD, LVD, POR, PWM, WDT | ARM® Cortex®-M4F | 100-LFQFP (14x14) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | 32-Bit | 70 | A/D 16x12b SAR, D/A 2x12b | 640 K | Surface Mount | ||||
Renesas Electronics Corporation R7FS7G27G3A01CFB#AA0 | 64 K | 105 °C | -40 °C | 144-LQFP | 240 MHz | 3 MB | Internal | 3.6 V | 2.7 V | FLASH | DMA, LCD, LVD, POR, PWM, WDT | ARM® Cortex®-M4 | 144-LFQFP (20x20) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | 32-Bit Single-Core | 104 | A/D 19x12b, D/A 2x12b | 640 K | Surface Mount | ||||
Renesas Electronics Corporation R7FS7G27G3A01CFB#BA0 | 64 K | 105 °C | -40 °C | 144-LQFP | 240 MHz | 3 MB | Internal | 3.6 V | 2.7 V | FLASH | DMA, LCD, LVD, POR, PWM, WDT | ARM® Cortex®-M4F | 144-LFQFP (20x20) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | 32-Bit | 104 | 640 K | Surface Mount | 2, 12 b, 19 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.01 | |
| 10 | $ 14.76 | |||
| 25 | $ 14.60 | |||
Description
General part information
R7FS7G27 Series
Designed for high-compute, performance-intensive, networked control applications requiring full memory redundancy, the S7G2 MCU Group has 3MB to 4MB of flash memory and 640KB of SRAM. Rich in features, it includes a graphics LCD controller, 2D drawing engine, Capacitive Touch Sensing Unit (CTSU), advanced analog, Ethernet MAC controller with IEEE 1588 PTP, USB 2.0 High-Speed and Full-Speed, SDHI, quad SPI, and safety and security features, to handle a wide range of complexity.
Commercial software worth over $100K which is available to developers using the Synergy Platform for no charge and with unlimited production license rights. The production-ready SSP is fully tested, maintained, and supported by Renesas.
