HR-3U-2500F7
ObsoleteFDK America, Inc.

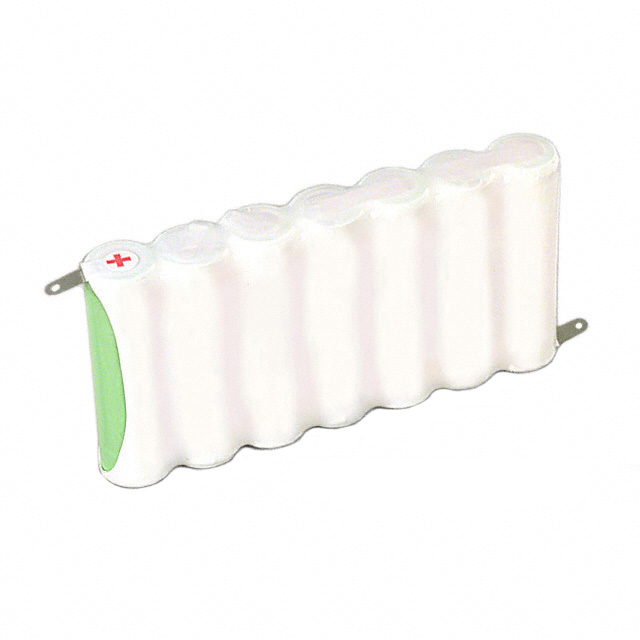

BATTERY PACK NIMH 8.4V AA
HR-3U-2500F7
ObsoleteFDK America, Inc.
BATTERY PACK NIMH 8.4V AA
Description
General part information
HR-3U-2500F7
AA 8.4 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HR-3U-2500F7 |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 2.3 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 7 |
| Rechargeability | Yes |
| Size / Dimension Height | 1.98 in |
| Size / Dimension Length | 3.97 in |
| Size / Dimension Width | 0.57 in |
| Structure | Side to Side |
| Structure Cells | 7 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 8.4 VDC |
| Weight | 210.47 g |
