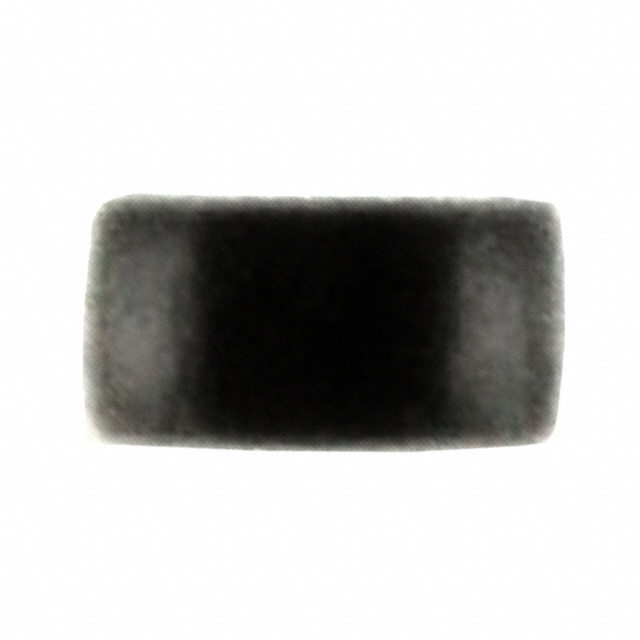

LI0402C470R-10
ActiveLaird Technologies EMI
FERRITE BEAD 47 OHM 0402 1LN
LI0402C470R-10
ActiveLaird Technologies EMI
FERRITE BEAD 47 OHM 0402 1LN
Description
General part information
LI0402C470R-10
47 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 0402 (1005 Metric) 300mA 150mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | LI0402C470R-10 |
|---|---|
| Current Rating (Max) | 300 mA |
| DC Resistance (DCR) (Max) | 150 mOhm |
| Filter Type | Signal Line, Power |
| Height (Max) | 0.02 in |
| Impedance | 47 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.04 in |
| Size / Dimension Width | 0.02 in |
