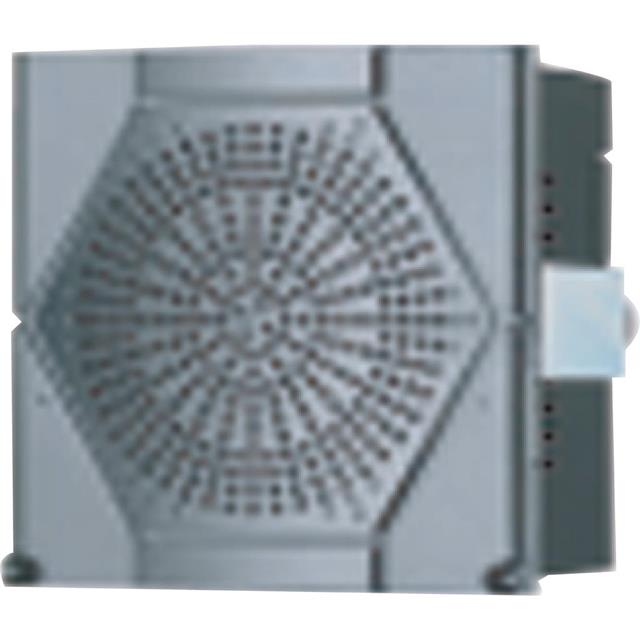

XVS96BMWP
ActiveSCHNEIDER ELECTRIC
ALARM NPN BLK 12-24V AC-DC 96MM 16 TONES ROHS COMPLIANT: YES
XVS96BMWP
ActiveSCHNEIDER ELECTRIC
ALARM NPN BLK 12-24V AC-DC 96MM 16 TONES ROHS COMPLIANT: YES
Description
General part information
XVS96BMWP
Buzzers 24 V 250 ~ 354mA DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | XVS96BMWP |
|---|---|
| Approval Agency | CE |
| Current - Supply (Max) | 354 mA |
| Current - Supply (Min) | 250 mA |
| Height - Seated (Max) | 3.78 in |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Input Type | DC |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | User Defined |
| Size / Dimension Length | 2.29 in |
| Size / Dimension Width | 3.78 in |
| Voltage - Rated | 24 VAC |
