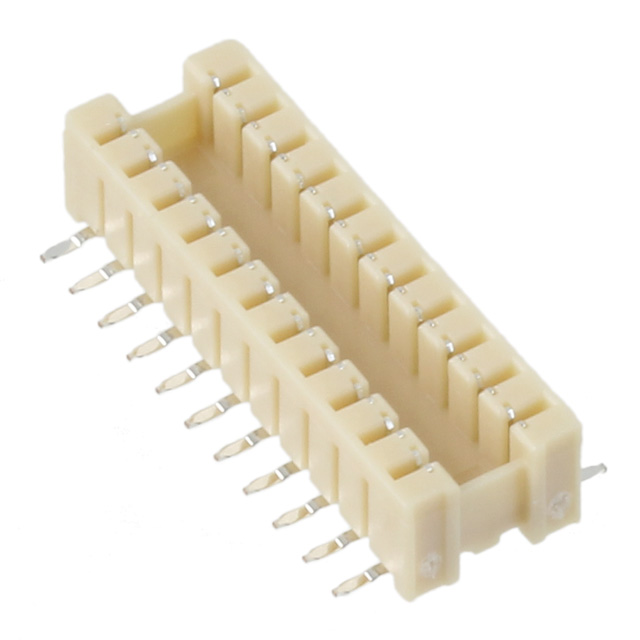

Specification	2-179437-2

Connector Type	Outer Shroud Contacts, Receptacle
Contact Finish	Tin
Features	Board Guide
Mounting Type	Surface Mount
Number of Positions	22
Number of Rows	2
Pitch	0.079 in

AMPMODU 2 mm Series

...

Part	Number of Positions Loaded	Contact Type	Contact Finish - Post	Number of Positions	Connector Type	Insulation Material	Material Flammability Rating	Current Rating	Pitch - Mating	Contact Finish Thickness - Mating	Termination	Shrouding	Insulation Height	Contact Length - Post	Style	Contact Material	Insulation Color	Mounting Type	Contact Length - Mating	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Features	Voltage Rating	Voltage Rating (Type)	Number of Rows	Fastening Type	Contact Shape	Row Spacing - Mating	Overall Contact Length
TE Connectivity AMP Connectors 2MM-HSD-S11-HT-01-F-TB	All	Male Pin	Tin	11	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	3.94 µin	Solder	Shrouded - 2 Wall	0.157 in	0.087 in	Board	Phosphor Bronze	Black	Right Angle Through Hole	0.157 in	Gold	-40 °C	105 °C	Pick and Place	125 V	DC	1	Detent Lock	Square
TE Connectivity AMP Connectors 2MM-HSP-S10-HT-01-H-TR	All	Male Pin	Tin	10	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	30 µin	Solder	Shrouded - 2 Wall	0.217 in	0.087 in	Board Board or Cable	Phosphor Bronze	Black	Right Angle Through Hole	0.157 in	Gold	-40 °C	125 °C		125 V	DC	1	Push-Pull	Square
TE Connectivity AMP Connectors 2MM-HSD-D12-VS-00-T-TBP	All	Male Pin	Tin	24 pos	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	100 µin	Solder	Shrouded - 2 Wall	0.217 in		Board Cable/Wire	Phosphor Bronze	Black	Surface Mount	0.157 in	Tin	-40 °C	105 °C	Pick and Place	125 V	DC	2	Detent Lock	Square	0.079 in
TE Connectivity AMP Connectors 2307813-4	All	Female Socket	Tin	4	Bottom or Top Entry Receptacle		UL94 V-0	2 A	0.079 in	3.94 µin	Solder		0.177 in		Board		Black	Surface Mount		Gold	-40 °C	125 °C	Pick and Place	125 V		1	Push-Pull
TE Connectivity AMP Connectors 2MM-RCD-D16-BX
TE Connectivity AMP Connectors 2MM-HSD-S13-VS-00-M-TBP	All	Male Pin	Tin	13	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	15 µin	Solder	Shrouded - 2 Wall	0.217 in		Board	Phosphor Bronze	Black	Surface Mount	0.157 in	Gold	-40 °C	125 °C	Pick and Place	125 V	DC	1	Latch Holder	Square
TE Connectivity AMP Connectors 2MM-HSD-S15-VS-00-F-TRP	All	Male Pin	Tin	15	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	3.94 µin	Solder	Shrouded - 2 Wall	0.217 in		Board	Phosphor Bronze	Black	Surface Mount	0.157 in	Gold	-40 °C	125 °C	Pick and Place	125 V	DC	1	Detent Lock	Square
TE Connectivity AMP Connectors 2MM-HSD-S06-HT-01-H-TB	All	Male Pin	Tin	6	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	30 µin	Solder	Shrouded - 2 Wall	0.157 in	0.087 in	Board	Phosphor Bronze	Black	Right Angle Through Hole	0.157 in	Gold	-40 °C	105 °C	Pick and Place	125 V	DC	1	Detent Lock	Square
TE Connectivity AMP Connectors 2MM-HB-D07-VT-01-H-TB	All	Male Pin	Tin	14	Header	Liquid Crystal Polymer (LCP)	UL94 V-0	2 A	0.079 in	30 µin	Solder	Unshrouded	0.059 in	0.087 in	Board	Phosphor Bronze	Black	Through Hole	0.157 in	Gold	-40 °C	105 °C		250 V		2	Push-Pull	Square	0.079 in	0.303 in
TE Connectivity AMP Connectors 2MM-HSP-S08-VT-01-T-TBP	All	Male Pin	Tin	8	Header	Liquid Crystal Polymer (LCP)	UL94 V-0	2 A	0.079 in	118.1 µin	Solder	Shrouded - 2 Wall	0.217 in	0.087 in	Board Board or Cable	Phosphor Bronze	Black	Through Hole	0.157 in	Tin	-40 °C	105 °C	Pick and Place	250 V		1	Push-Pull	Square		0.709 in
