Description
General part information

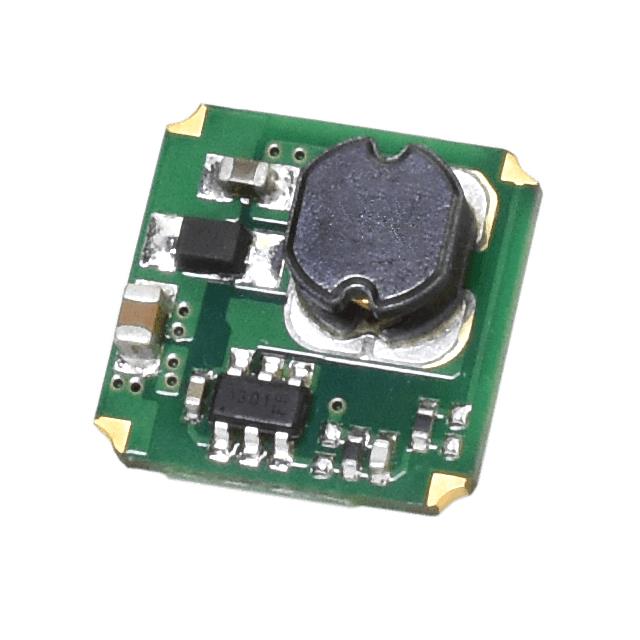

PXO7805-500-M-TR
Non-Isolated PoL Module DC DC Converter 1 Output 5V 500mA 6.5V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PXO7805-500-M-TR |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 500 mA |
| Efficiency | 90 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD Module |
| Power (Watts) | 2.5 W |
| Size / Dimension Height | 0.18 in |
| Size / Dimension Length | 0.47 in |
| Size / Dimension Width | 0.47 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 6.5 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
