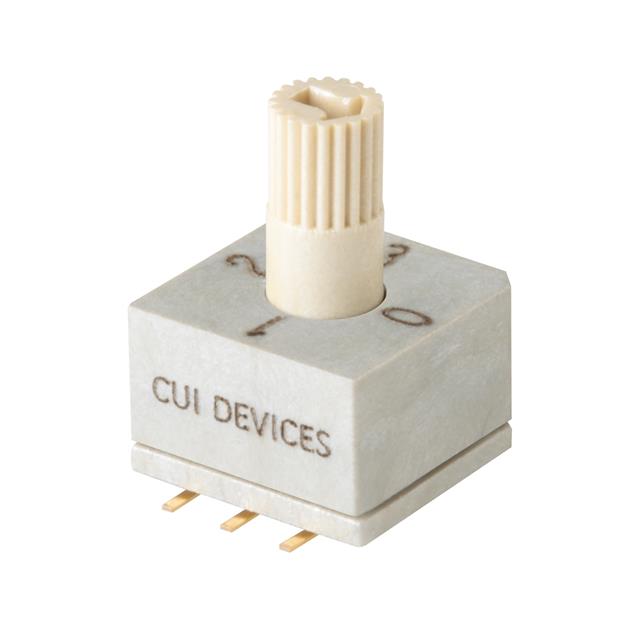

RDS7-4S-1065-73-SMT-TR-67
ActiveSame Sky (Formerly CUI Devices)
SWITCH ROTARY DIP SPST 0.15A 42V
RDS7-4S-1065-73-SMT-TR-67
ActiveSame Sky (Formerly CUI Devices)
SWITCH ROTARY DIP SPST 0.15A 42V
Description
General part information
RDS7-4S-1065-73-SMT-TR-67
Dip Switch SPST Position Surface Mount Rotary with Shaft Actuator 150mA 42VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | RDS7-4S-1065-73-SMT-TR-67 |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Rotary with Shaft |
| Body Material | Liquid Crystal Polymer, LCP |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating | 150 mA |
| Electrical Life (Steps) | 10000 Steps |
| Height Above Board | 0.555 in |
| Length | 0.394 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | Gull Wing |
| Voltage Rating | 42 V |
| Washable | No |
