Description
General part information

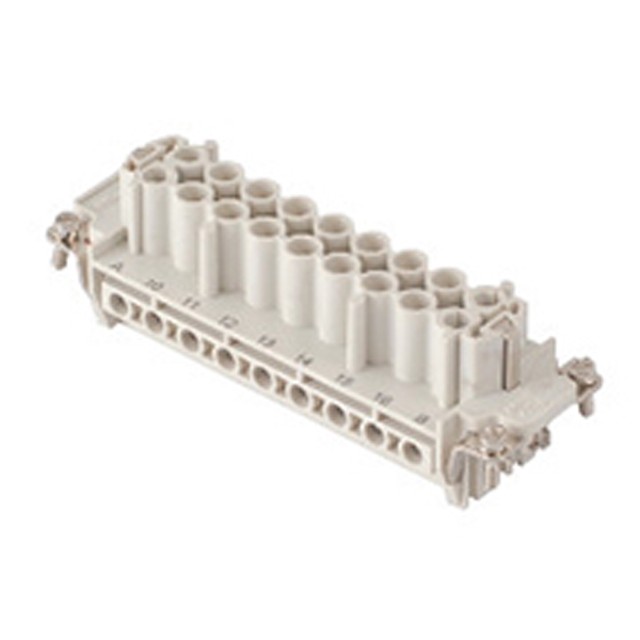

0936010400
24B SEHV F INS SCRW 16+2/16A 830
Technical Specifications
Parameters and characteristics for this part
| Specification | 0936010400 |
|---|---|
| Connector Type | Insert |
| Current Rating | 16 A |
| Gender | Female |
| Number of Positions | 18 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Position Types | Ground |
| Size | 48B |
| Termination Style | Terminal Block, Straight - Screw |
| Voltage Rating | 830 V |
