K1F003MCH
ActiveSCHNEIDER ELECTRIC
SWITCH SELECT 3P SPDT 5.6A 230V
K1F003MCH
ActiveSCHNEIDER ELECTRIC
SWITCH SELECT 3P SPDT 5.6A 230V
Description
General part information
K1F003MCH

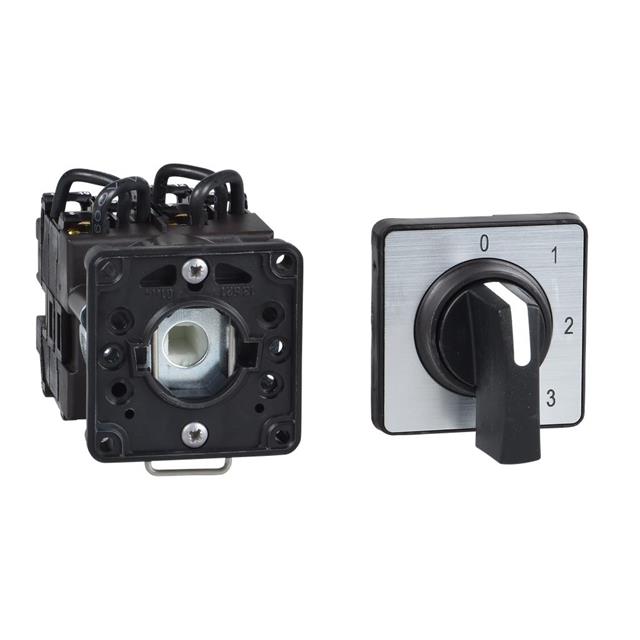

Selector Switch 3 Position SPDT 5.6A (AC) 230 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | K1F003MCH |
|---|---|
| Approval Agency | UL, CSA |
| Circuit | SPDT |
| Current Rating | 5.6 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off-On |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 230 V |
