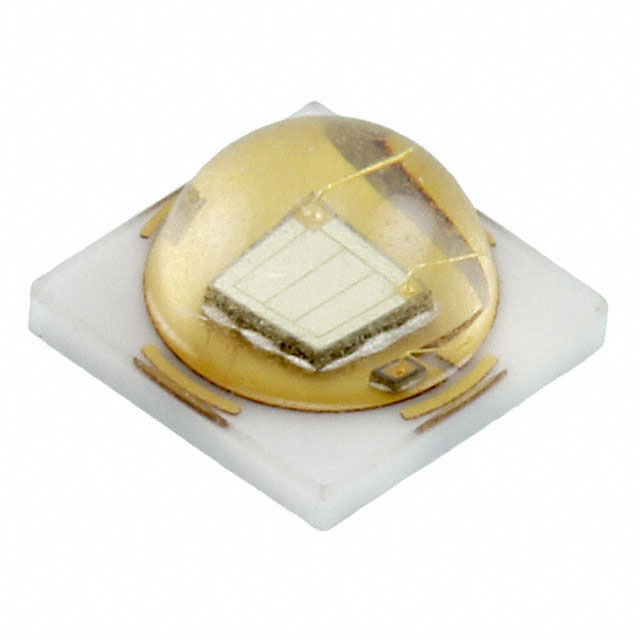

Specification	SZG05A0A

Color	Green
Current - Max	700 mA
Current - Test	350 mA
Height - Seated (Max)	0.085 in
Lumens/Watt	87 lm/W
Luminous Flux (Typical)	100 lm
Mounting Type	Surface Mount
Package / Case	1414 (3535 Metric)
Package Name	SMD
Size / Dimension Length	0.138 in
Size / Dimension Width	0.138 in
Temperature - Test	25 °C
Thermal Resistance of Package	10 °C/W
Viewing Angle	128 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength (Typ)	525 nm
