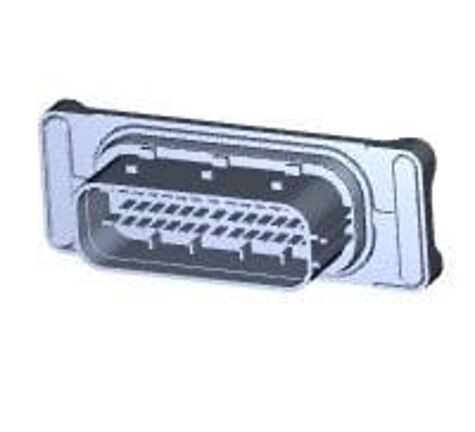

Specification	5-1418363-1

Connector Type	Header
Contact Finish - Mating	Silver
Contact Length - Post	0.291 in
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating	40 A
Fastening Type	Push-Pull
Ingress Protection	IP67
Insulation Color	Green
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 HB
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	39
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	140 °C
Operating Temperature (Min)	-40 °C
Row Spacing - Mating	0.217 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	36 VAC

LEAVYSEAL Series

...

Part	Mounting Type	Number of Positions	Contact Type	Contact Termination	Insulation Material	Color	Features	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Pitch	Number of Rows	Fastening Type	For Use With/Related Products	Accessory Type	Row Spacing	Note
TE Connectivity AMP Connectors 2358801-1	Free Hanging (In-Line)	62	Tab	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Black	Sealed	Plug
TE Connectivity AMP Connectors 2378366-2	Free Hanging (In-Line)	58	Tab	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Black		Receptacle	120 °C	-40 °C	0.197 in	8	Lever Lock
TE Connectivity AMP Connectors 1718328-1														LEAVYSEAL Series	Locking Slide
TE Connectivity AMP Connectors 3-1823498-1	Free Hanging (In-Line) Right Angle	62	Female Socket	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Blue	IP67	Receptacle	120 °C	-40 °C		4	Lever Lock			0.1 in
TE Connectivity AMP Connectors 5-1718323-1	Free Hanging (In-Line)	39	Tab	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Green	Sealed	Plug	120 °C	-40 °C	0.197 in	3				0.217 in	Contacts Not Included
TE Connectivity AMP Connectors 1-2366619-2	Free Hanging (In-Line) Right Angle	62	Female Socket	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Blue	Sealed	Receptacle	120 °C	-40 °C			Lever Lock			0.157 in
TE Connectivity AMP Connectors 1-2328352-2	Free Hanging (In-Line)	25	Female Socket	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Black	Terminal Position Lock (TPA)	Receptacle	120 °C	-40 °C		4	Lever Lock			0.236 in
TE Connectivity AMP Connectors 3-1418883-1	Free Hanging (In-Line)	62	Female Socket	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Blue		Receptacle	120 °C	-40 °C		4
TE Connectivity AMP Connectors 3-1534126-1	Free Hanging (In-Line)	15	Female Socket	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Blue		Receptacle	120 °C	-40 °C	0.197 in	3				0.217 in
TE Connectivity AMP Connectors 3-2112162-1	Panel Mount	21	Tab	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	Blue	IP67	Plug	120 °C	-40 °C	0.197 in	2	Push-Pull			0.236 in
