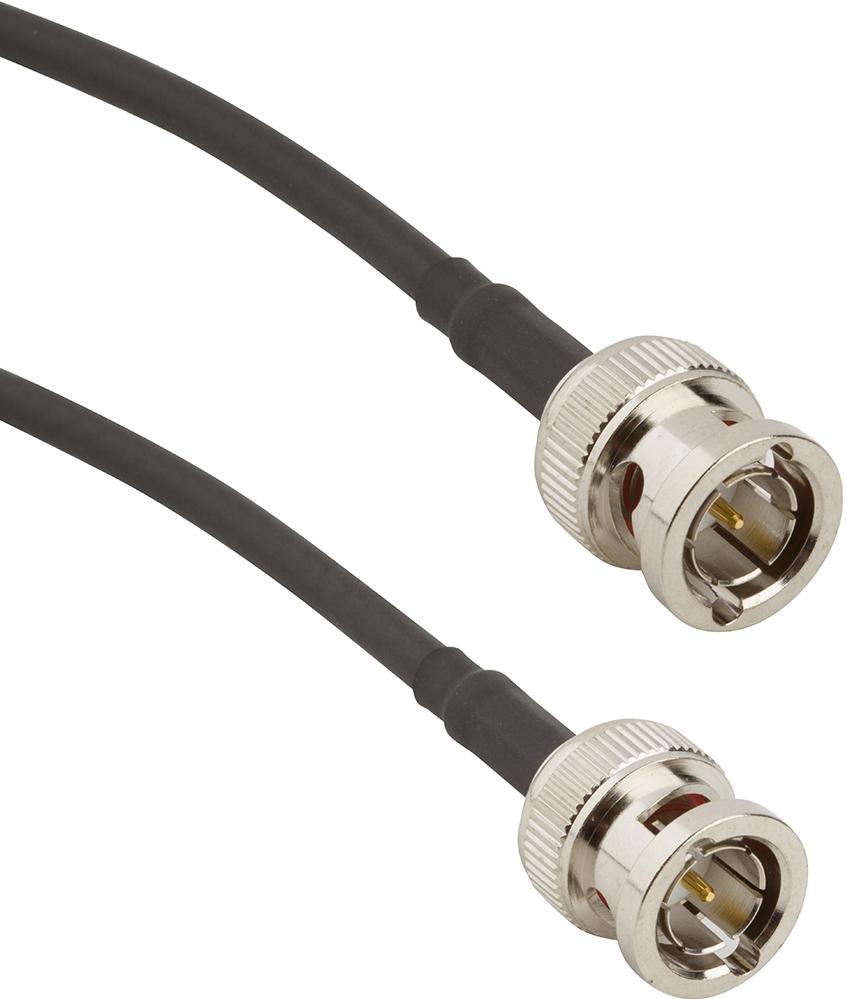

Specification	115101-06-24.00

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	75 Ohms
Cable Type	Belden
Cable Type Size	8218
Color	Black
Connector Impedance	75 Ohms
Features	Shielded
Length	24 in
Overall Impedance	75 Ohms
Style	BNC

115101 Series

Part	1st Connector Mounting Type	2nd Connector	1st Contact Gender	Cable Type	Color	2nd Connector Mounting Type	1st Connector	Style	Length	2nd Contact Gender	Overall Impedance	Cable Impedance	Features	Connector Impedance	Frequency - Max	Length (ft)	Cable Type Size
McGill Microwave Systems 115101-19-M3.00	Free Hanging (In-Line)	BNC Plug	Male	58 RG	Black	Free Hanging (In-Line)	BNC Plug	BNC	118.1 in	Male	50 Ohms	50 Ohms
McGill Microwave Systems 115101-19-36.00	Free Hanging (In-Line)	BNC Plug	Male	58 RG	Black	Free Hanging (In-Line)	BNC Plug	BNC	36 in	Male	50 Ohms	50 Ohms
McGill Microwave Systems 115101-19-600	Free Hanging (In-Line)	BNC Plug	Male	58 RG	Black	Free Hanging (In-Line)	BNC Plug	BNC	15.24 m	Male	50 Ohms	50 Ohms
McGill Microwave Systems 115101-35-06.00	Free Hanging (In-Line)	BNC Plug	Male	Belden 179DT	Black	Free Hanging (In-Line)	BNC Plug	BNC	0.5 ft	Male	75 Ohms	75 Ohms	Shielded	75 Ohms	4 GHz
McGill Microwave Systems 115101-35-48.00	Free Hanging (In-Line)	BNC Plug	Male	Belden 179DT	Black	Free Hanging (In-Line)	BNC Plug	BNC	48 in	Male	75 Ohms	75 Ohms	Shielded	75 Ohms	4 GHz
McGill Microwave Systems 115101-19-M1.00	Free Hanging (In-Line)	BNC Plug	Male	58 RG	Black	Free Hanging (In-Line)	BNC Plug	BNC	39.4 in	Male	50 Ohms	50 Ohms
McGill Microwave Systems 115101-19-M20.0	Free Hanging (In-Line)	BNC Plug	Male	58 RG	Black	Free Hanging (In-Line)	BNC Plug	BNC	787.4 in	Male	50 Ohms	50 Ohms
McGill Microwave Systems 115101-35-M3.00	Free Hanging (In-Line)	BNC Plug	Male	Belden 179DT	Black	Free Hanging (In-Line)	BNC Plug	BNC	118.1 in	Male	75 Ohms	75 Ohms	Shielded	75 Ohms	4 GHz
McGill Microwave Systems 115101-19-M2.00	Free Hanging (In-Line)	BNC Plug	Male	58 RG	Black	Free Hanging (In-Line)	BNC Plug	BNC		Male	50 Ohms	50 Ohms				6.6 ft
McGill Microwave Systems 115101-06-36.00	Free Hanging (In-Line)	BNC Plug	Male	Belden	Black	Free Hanging (In-Line)	BNC Plug	BNC	36 in	Male	75 Ohms	75 Ohms	Shielded	75 Ohms			8218

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

115101-xx Overview
