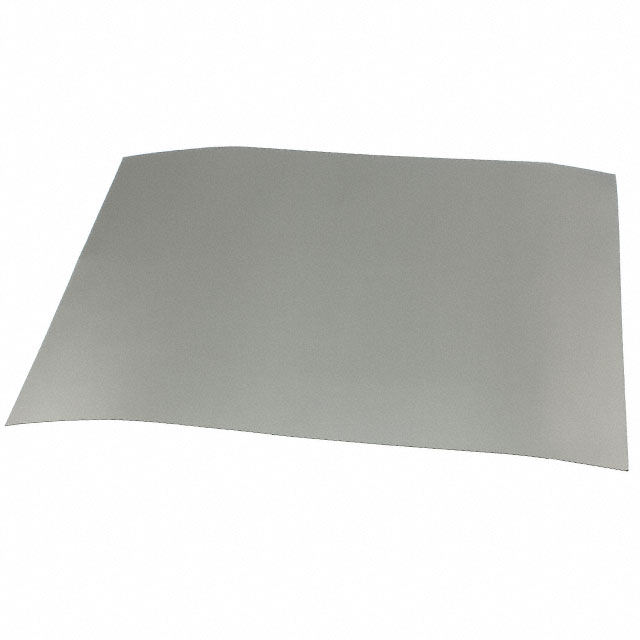

AB7020-210MMX297MM
Obsolete3M Electronic Specialty
RF ABSORB SHEET 11.693"X8.268"
AB7020-210MMX297MM
Obsolete3M Electronic Specialty
RF ABSORB SHEET 11.693"X8.268"
Description
General part information
AB7020-210MMX297MM
RF EMI Absorbing Sheet AB7000 Polymer Resin, Metal Flakes Pressure Sensitive Adhesive (PSA) 8.268" (210.00mm) X 11.693" (297.00mm) X
Technical Specifications
Parameters and characteristics for this part
| Specification | AB7020-210MMX297MM |
|---|---|
| Adhesive | Pressure Sensitive Adhesive (PSA) |
| Length | 11.693 in |
| Material | Polymer Resin, Metal Flakes |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Shape | Rectangular |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Shipment |
| Storage/Refrigeration Temperature | 70 °F |
| Type | Absorbing Sheet |
| Width | 8.268 in |
