Specification	AT15-12PC-BM16

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post	0.122 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	13 A
Fastening Type	Latch Holder
Features	Mounting Flange, Board Guide, Mating Flange
Ingress Protection	IP67
Insulation Color	Green
Insulation Height	1.378 in
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Row Spacing - Mating	0.358 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

AT Series

...

Part	Note	Number of Positions	Number of Rows	Connector Type	Mounting Type	Color	Insulation Material	Contact Type	Contact Termination	Features	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Contact Material	Row Spacing - Mating	Contact Finish - Post	Style	Ingress Protection	Voltage Rating	Number of Positions Loaded	Insulation Color	Contact Finish - Mating	Contact Shape	Insulation Height	Current Rating	Termination	Contact Length - Post	Shrouding	For Use With/Related Products	Number of Positions	Accessory Type	Applications
McGill Microwave Systems AT04-3P-MM01	Contacts Not Included	3	2	Receptacle	Free Hanging (In-Line)	Gray	Thermoplastic	Male Pin	Crimp	Cap (Cover) Sealed	125 °C	-55 °C	Latch Holder
McGill Microwave Systems AT13-12PC-BM04		12	2	Receptacle	Right Angle Through Hole		Thermoplastic	Male Pin		Board Guide Mating Flange Mounting Flange Potting Wall	125 °C	-55 °C	Latch Holder	Copper Alloy	0.358 in	Tin	Board Cable/Wire	IP67	250 V	All	Green	Tin	Circular	1.39 in	13 A	Solder	0.122 in	Shrouded - 4 Wall

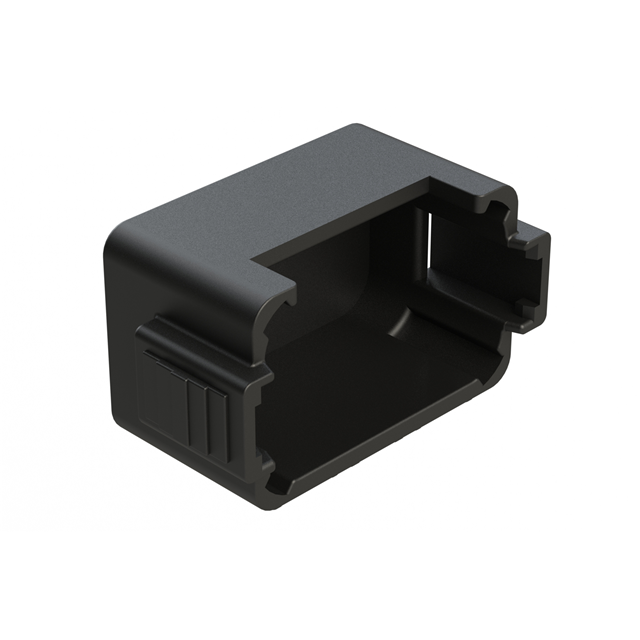

McGill Microwave Systems AT16-1518S-CAP										IP68/IP69K																			AT Series	12 15 18	Protective Cover
McGill Microwave Systems AT04-XP-PM1X-G7		2																											AT Series™		Gasket
McGill Microwave Systems AT13-12PA-BM03		12	2	Receptacle	Right Angle Through Hole		Thermoplastic	Male Pin		Board Guide Mating Flange Mounting Flange	125 °C	-55 °C	Latch Holder	Copper Alloy	0.25 in	Tin	Board Cable/Wire	IP67	250 V	All	Gray	Tin	Circular	1.39 in	13 A	Solder	0.122 in	Shrouded - 4 Wall				Automotive Industrial
McGill Microwave Systems AT04-12PC-BM02		12	2	Receptacle	Through Hole		Thermoplastic	Male Pin		Board Lock Potting Wall	125 °C	-55 °C	Latch Holder	Copper Alloy			Board Cable/Wire	IP67		All	Green	Gold	Circular	0.835 in	13 A	Solder		Shrouded - 4 Wall				Automotive General Purpose Industrial
McGill Microwave Systems AT04-12PD-BM03		12	2	Receptacle	Through Hole		Thermoplastic	Male Pin		Board Lock	125 °C	-55 °C	Latch Holder	Copper Alloy			Board Cable/Wire	IP67		All	Brown	Nickel	Circular	0.835 in	13 A	Solder		Shrouded - 4 Wall				Automotive General Purpose Industrial

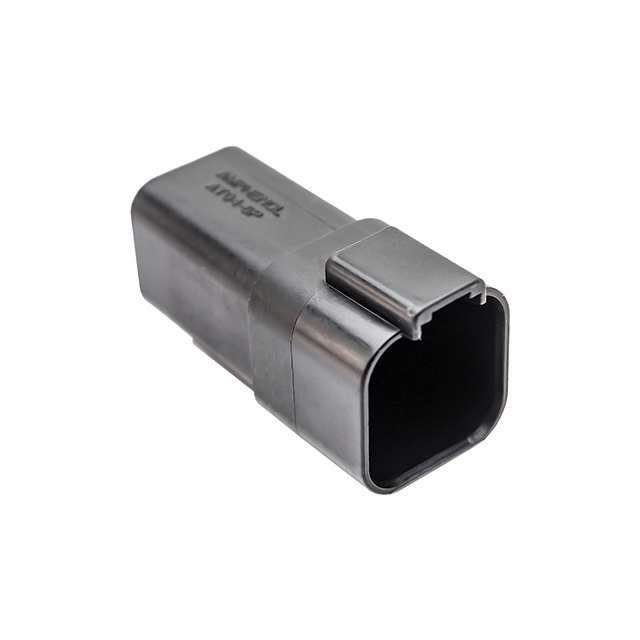

McGill Microwave Systems AT04-6P-BLK	Contacts Not Included	6	3	Receptacle	Free Hanging (In-Line)	Black	Thermoplastic	Male Pin	Crimp		125 °C	-55 °C	Latch Holder
McGill Microwave Systems AT06-6S-SR02BLK	Contacts Not Included	6	3	Plug	Free Hanging (In-Line)	Black	Thermoplastic	Female Socket	Crimp	Strain Relief	125 °C	-55 °C	Latch Lock
McGill Microwave Systems AT06-12SB		12	2	Plug	Free Hanging (In-Line)	Black	Thermoplastic	Female Socket	Crimp	Sealed	125 °C	-55 °C	Latch Lock
