FMCA2786-100CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-BNCPLUG 39.37
FMCA2786-100CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-BNCPLUG 39.37
Description
General part information
FMCA2786-100CM

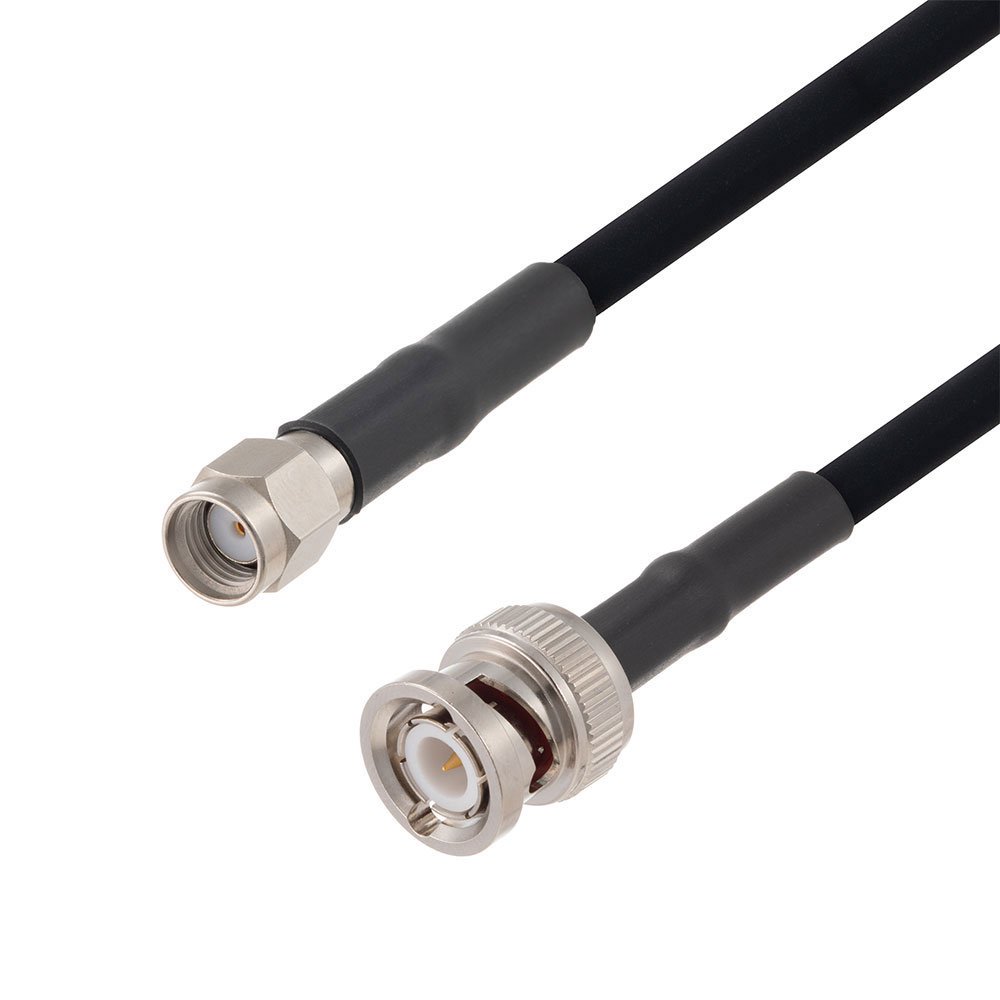

Cable Assembly Coaxial RP-SMA to BNC RG-223 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2786-100CM |
|---|---|
| 1st Connector | RP-SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length | 39.4 in |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA, BNC |
