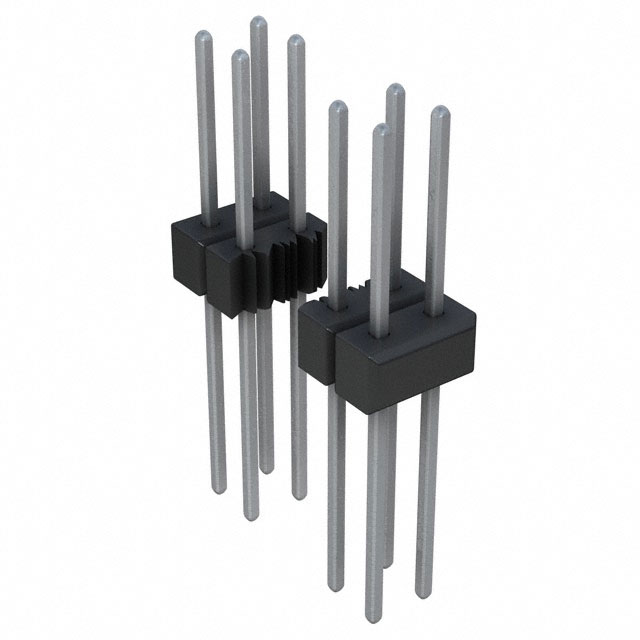

PBC34DFDN

Active

Sullins Connector Solutions

CONN HEADER VERT 68POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC34DFDN

Active

Sullins Connector Solutions

CONN HEADER VERT 68POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC34DFDN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	10.67 mm
Contact Length - Post [x]	0.42 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	68
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	21.29 mm
Overall Contact Length	0.838 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC34 Series

Part	Fastening Type	Insulation Height	Insulation Height	Shrouding	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Type	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Current Rating (Amps)	Number of Positions Loaded	Termination	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Mating	Number of Positions	Style	Contact Material	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PBC34DAHN	Push-Pull	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Through Hole	125 °C	-65 ░C	Breakaway Header	20.83 mm	0.82 in	Square	10 çin	0.25 çm	2.54 mm	0.1 in	2	1.15 in	29.21 mm	Male Pin	UL94 V-0	2.54 µm	100 µin	Black	3 A	All	Solder	0.23 in	5.84 mm	Gold	68	Board to Board Cable	Phosphor Bronze	Tin
Sullins Connector Solutions PBC34SBBN	Push-Pull	0.14 in	3.56 mm	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Through Hole Right Angle	125 °C	-65 ░C	Breakaway Header	5.08 mm	0.2 in	Square	10 çin	0.25 çm			1			Male Pin	UL94 V-0	2.54 µm	100 µin	Black	3 A	All	Solder	0.23 in	5.84 mm	Gold	34	Board to Board Cable	Phosphor Bronze	Tin
Sullins Connector Solutions PBC34SGBN	Push-Pull	0.14 in	3.56 mm	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Through Hole Right Angle	125 °C	-65 ░C	Breakaway Header	5.08 mm	0.2 in	Square	10 çin	0.25 çm			1			Male Pin	UL94 V-0	2.54 µm	100 µin	Black	3 A	All	Solder	0.318 "		Gold	34	Board to Board Cable	Phosphor Bronze	Tin	8.08 mm
Sullins Connector Solutions PBC34DFEN	Push-Pull	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Through Hole	125 °C	-65 ░C	Breakaway Header			Square	10 çin	0.25 çm	2.54 mm	0.1 in	2	0.938 in	23.83 mm	Male Pin	UL94 V-0	2.54 µm	100 µin	Black	3 A	All	Solder	0.318 "		Gold	68	Board to Board Cable	Phosphor Bronze	Tin	8.08 mm	13.21 mm	0.52 "
Sullins Connector Solutions PBC34DFDN	Push-Pull	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Through Hole	125 °C	-65 ░C	Breakaway Header	10.67 mm	0.42 in	Square	10 çin	0.25 çm	2.54 mm	0.1 in	2	0.838 in	21.29 mm	Male Pin	UL94 V-0	2.54 µm	100 µin	Black	3 A	All	Solder	0.318 "		Gold	68	Board to Board Cable	Phosphor Bronze	Tin	8.08 mm
Sullins Connector Solutions PBC34SAGN	Push-Pull	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Through Hole	125 °C	-65 ░C	Breakaway Header	18.29 mm	0.72 "	Square	10 çin	0.25 çm			1	1.05 in	26.67 mm	Male Pin	UL94 V-0	2.54 µm	100 µin	Black	3 A	All	Solder	0.23 in	5.84 mm	Gold	34	Board to Board Cable	Phosphor Bronze	Tin
Sullins Connector Solutions PBC34SBDN	Push-Pull	0.14 in	3.56 mm	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Through Hole Right Angle	125 °C	-65 ░C	Breakaway Header	10.16 mm	0.4 in	Square	10 çin	0.25 çm			1			Male Pin	UL94 V-0	2.54 µm	100 µin	Black	3 A	All	Solder	0.23 in	5.84 mm	Gold	34	Board to Board Cable	Phosphor Bronze	Tin
Sullins Connector Solutions PBC34DBAN	Push-Pull	0.24 in	6.1 mm	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Through Hole Right Angle	125 °C	-65 ░C	Breakaway Header			Square	10 çin	0.25 çm	2.54 mm	0.1 in	2			Male Pin	UL94 V-0	2.54 µm	100 µin	Black	3 A	All	Solder	0.23 in	5.84 mm	Gold	68	Board to Board Cable	Phosphor Bronze	Tin		2.54 mm	0.1 in
Sullins Connector Solutions PBC34SAAN	Push-Pull	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Through Hole	125 °C	-65 ░C	Breakaway Header	3.05 mm	0.12 in	Square	10 çin	0.25 çm			1	0.45 "	11.43 mm	Male Pin	UL94 V-0	2.54 µm	100 µin	Black	3 A	All	Solder	0.23 in	5.84 mm	Gold	34	Board to Board Cable	Phosphor Bronze	Tin
Sullins Connector Solutions PBC34DAEN	Push-Pull	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Through Hole	125 °C	-65 ░C	Breakaway Header			Square	10 çin	0.25 çm	2.54 mm	0.1 in	2	0.85 in	21.59 mm	Male Pin	UL94 V-0	2.54 µm	100 µin	Black	3 A	All	Solder	0.23 in	5.84 mm	Gold	68	Board to Board Cable	Phosphor Bronze	Tin		13.21 mm	0.52 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.81
		10	$ 5.25
		100	$ 4.60
		500	$ 3.87
		1000	$ 3.46

Description

General part information

PBC34 Series

Connector Header Through Hole 68 position 0.100" (2.54mm)
