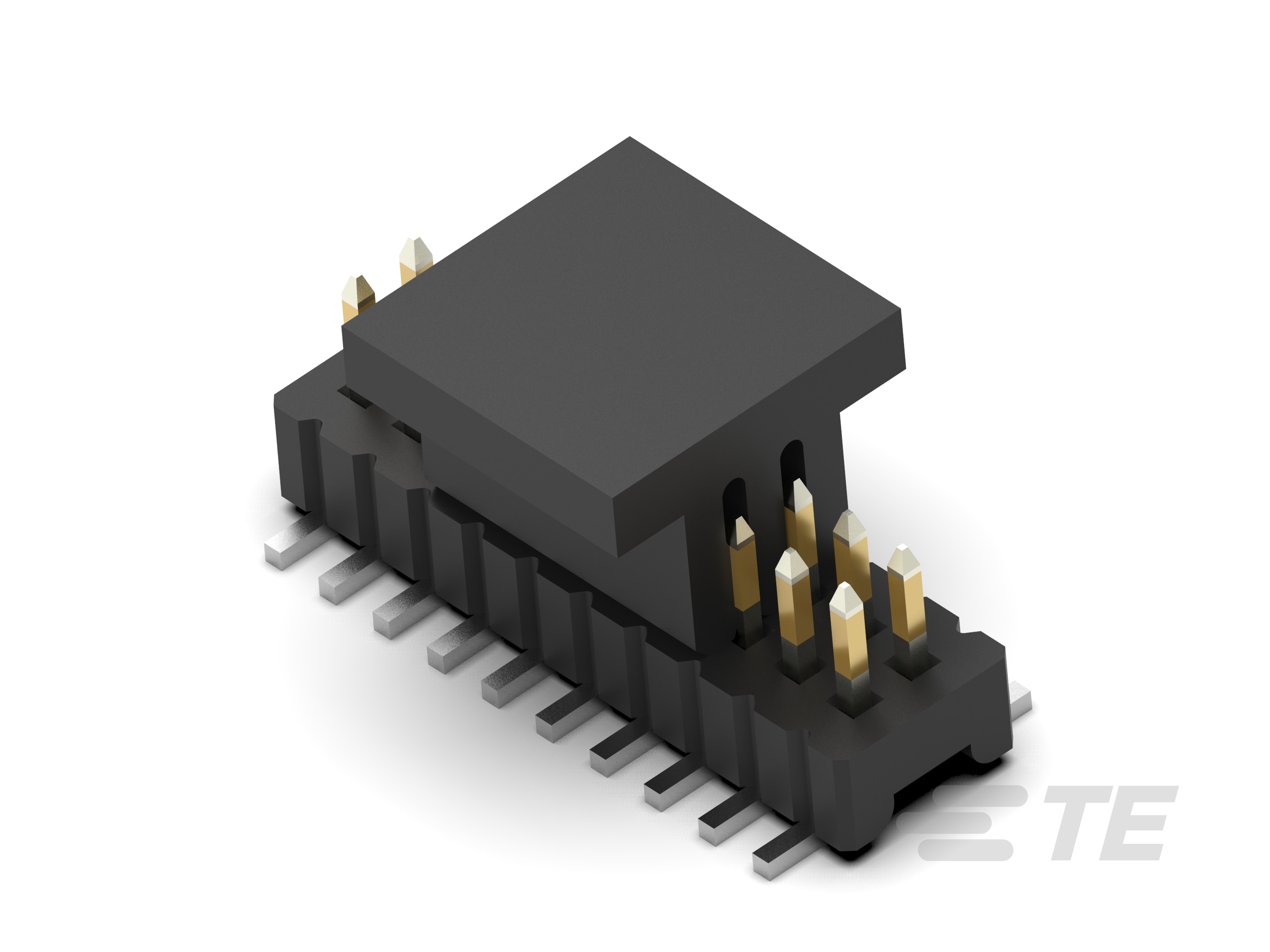

Specification	1MM-HU-D13-VS-00-H-TBP

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.083 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.059 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.039 in
Row Spacing - Mating	0.039 in
Shrouding	Unshrouded
Style	Board
Termination	Solder
Voltage Rating	30 V

AMPMODU Small Centerline Series

...

Part	Number of Positions	Connector Type	Number of Rows	Features	Fastening Type	Style	Insulation Color	Material Flammability Rating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Contact Type	Row Spacing - Mating	Insulation Height	Termination	Current Rating	Mounting Type	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Length - Mating	Shrouding	Contact Shape	Insulation Material	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1MM-R-D50-VS-00-F-TBP	100	Receptacle	2	Pick and Place	Push-Pull	Board	Black	UL94 V-0	0.039 in	Tin	All	Female Socket	0.039 in	0.118 in	Solder	1 A	Surface Mount	30 V	125 °C	-55 °C	Gold	5 µin
TE Connectivity AMP Connectors 1MM-R-D21-VS-00-H-TRP	42	Receptacle	2	Pick and Place	Push-Pull	Board	Black	UL94 V-0	0.039 in	Tin	All	Female Socket	0.039 in	0.118 in	Solder	1 A	Surface Mount	30 V	125 °C	-55 °C	Gold	30 µin
TE Connectivity AMP Connectors 1MM-R-D27-VS-00-H-TRP	54	Receptacle	2	Pick and Place	Push-Pull	Board	Black	UL94 V-0	0.039 in	Tin	All	Female Socket	0.039 in	0.118 in	Solder	1 A	Surface Mount	30 V	125 °C	-55 °C	Gold	30 µin
TE Connectivity AMP Connectors 1MM-HU-D10-VS-00-H-TRP	20	Breakaway Header	2	Pick and Place	Push-Pull	Board	Black	UL94 V-0	0.039 in	Tin	All	Male Pin	0.039 in	0.059 in	Solder	1 A	Surface Mount	30 V	125 °C	-55 °C	Gold	30 µin	Phosphor Bronze	0.083 in	Unshrouded	Square	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 1MM-HU-D37-VS-00-F-TRP	74	Breakaway Header	2	Pick and Place	Push-Pull	Board	Black	UL94 V-0	0.039 in	Tin	All	Male Pin	0.039 in	0.059 in	Solder	1 A	Surface Mount	30 V	125 °C	-55 °C	Gold	3.94 µin	Phosphor Bronze	0.083 in	Unshrouded	Square	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 1MM-R-D29-VS-00-H-TRP	58	Receptacle	2	Pick and Place	Push-Pull	Board	Black	UL94 V-0	0.039 in	Tin	All	Female Socket	0.039 in	0.118 in	Solder	1 A	Surface Mount	30 V	125 °C	-55 °C	Gold	30 µin
TE Connectivity AMP Connectors 1MM-R-D38-VS-00-F-TRP	76	Receptacle	2	Pick and Place	Push-Pull	Board	Black	UL94 V-0	0.039 in	Tin	All	Female Socket	0.039 in	0.118 in	Solder	1 A	Surface Mount	30 V	125 °C	-55 °C	Gold	5 µin
TE Connectivity AMP Connectors 1MM-R-D47-VS-00-H-TBP	94	Receptacle	2	Pick and Place	Push-Pull	Board	Black	UL94 V-0	0.039 in	Tin	All	Female Socket	0.039 in	0.13 in	Solder	1 A	Surface Mount	30 V	125 °C	-55 °C	Gold	30 µin
TE Connectivity AMP Connectors 1MM-R-D48-VS-00-H-TBP	96	Receptacle	2	Pick and Place	Push-Pull	Board	Black	UL94 V-0	0.039 in	Tin	All	Female Socket	0.039 in	0.13 in	Solder	1 A	Surface Mount	30 V	125 °C	-55 °C	Gold	30 µin	Copper Alloy			Square	Thermoplastic	150 µin
TE Connectivity AMP Connectors 1MM-R-D26-VS-00-F-TRP	52	Receptacle	2	Pick and Place	Push-Pull	Board	Black	UL94 V-0	0.039 in	Tin	All	Female Socket	0.039 in	0.118 in	Solder	1 A	Surface Mount	30 V	125 °C	-55 °C	Gold	5 µin
