1-2293127-1
ActiveTE Connectivity AMP Connectors
42POS,MIXED,HEADER ASSY,REFLOW
1-2293127-1
ActiveTE Connectivity AMP Connectors
42POS,MIXED,HEADER ASSY,REFLOW
Description
General part information

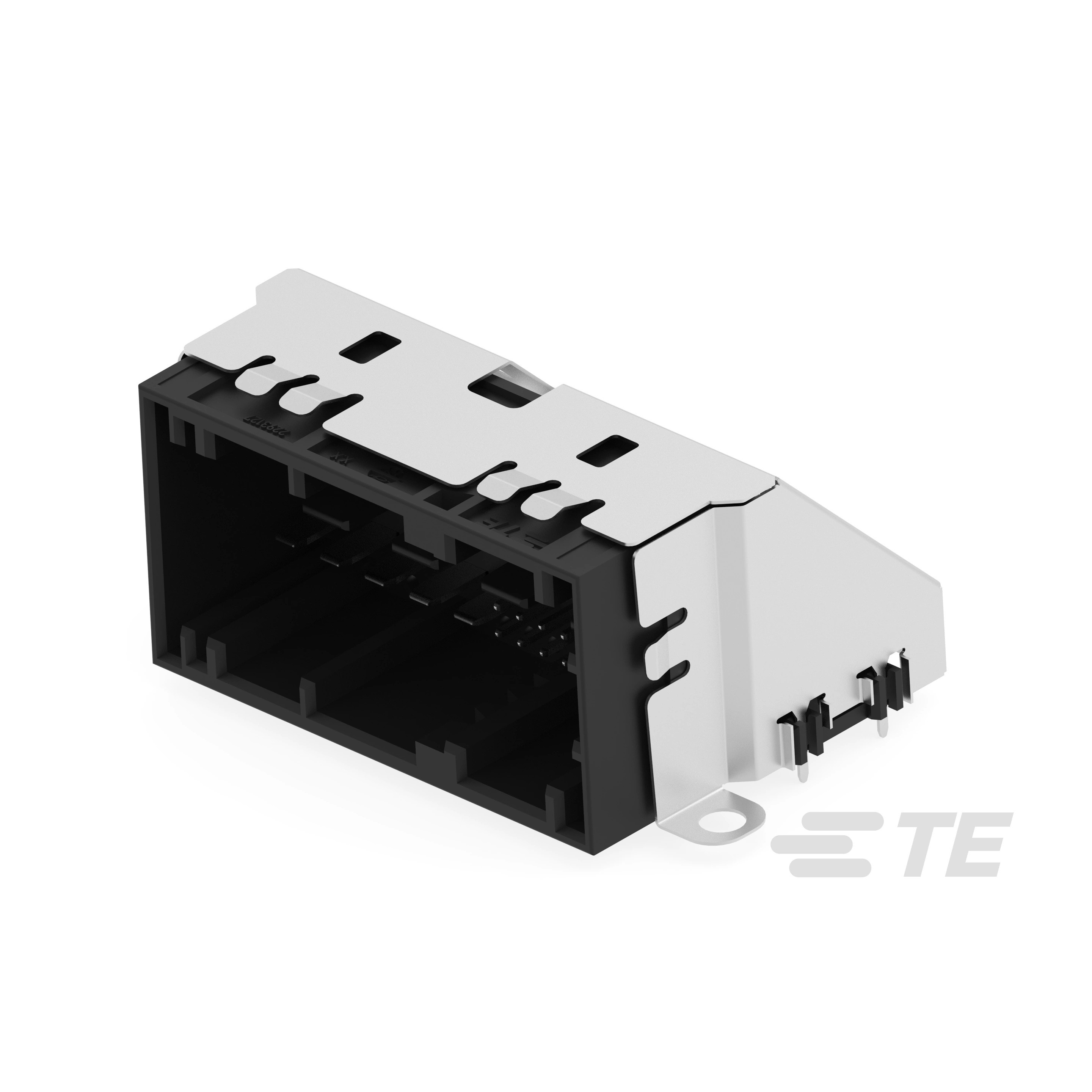

1-2293127-1
Horizontal, Wire-to-Board, 42 Position, 4 Rows, 2.54mm / 5.08mm [.1in / .2in] Centerline, Tin (Sn), Printed Circuit Board, Black, Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2293127-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Length - Mating | 0.268 in |
| Contact Length - Post | 0.083 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin, Male Blade |
| Fastening Type | Push-Pull |
| Features | Solder Retention, Board Guide, Shielded |
| Insulation Color | Black |
| Insulation Height | 1.104 in |
| Insulation Material | Polyphthalamide (PPA), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 42 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
