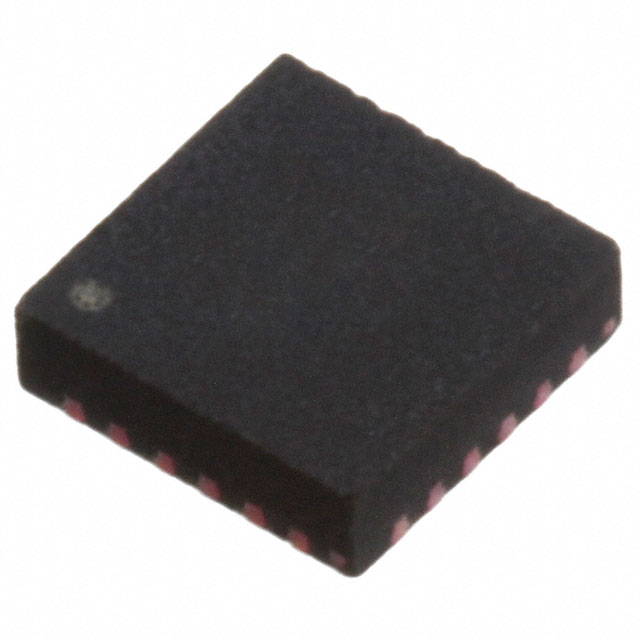

MPU-3050
ObsoleteTDK Corporation
GYRO/ACCELEROMETER 3-AXIS 24QFN
MPU-3050
ObsoleteTDK Corporation
GYRO/ACCELEROMETER 3-AXIS 24QFN
Description
General part information
MPU-3050
Gyroscope X (Pitch), Y (Roll), Z (Yaw) ±250, 500, 1000, 2000 33kHz (X), 30kHz (Y), 27kHz (Z) I2C 24-QFN (4x4)
Technical Specifications
Parameters and characteristics for this part
| Specification | MPU-3050 |
|---|---|
| Axis | Y (Roll), Z (Yaw), X (Pitch) |
| Bandwidth | 27 kHz, 33 kHz, 30 kHz |
| Bandwidth Mode | X, Z, Y |
| Current - Supply | 6.1 mA |
| Features | Adjustable Bandwidth, Sleep Mode, Temperature Sensor, Selectable Scale |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | I2C |
| Package / Case | 24-VFQFN Exposed Pad |
| Range Options | ±250, 1000, 2000, 500 |
| Sensitivity (LSB/(°/s)) (Max) | 131 LSB/(°/s) |
| Sensitivity (LSB/(°/s)) (Min) | 16.4 LSB/(°/s) |
| Type | Digital |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.1 V |
