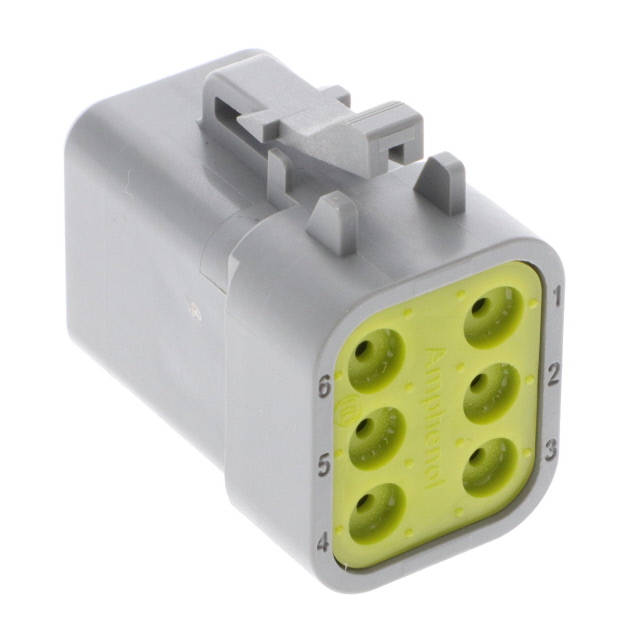

Specification	ATP06-6S-RD01

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

ATP06-6S Series

Part	Note	Color	Number of Rows	Connector Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Contact Termination	Insulation Material	Number of Positions	Fastening Type	Contact Type
McGill Microwave Systems ATP06-6S-BLK	Contacts Not Included	Black	3	Plug	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	Crimp	Thermoplastic	6	Latch Lock	Female Socket
McGill Microwave Systems ATP06-6S-OMBLU	Contacts Not Included	Blue	3	Plug	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	Crimp	Thermoplastic	6	Latch Lock	Female Socket
McGill Microwave Systems ATP06-6S-OMRDBLK	Contacts Not Included	Black	3	Plug	Reduced Wire Seals Sealed	125 °C	-55 °C	Free Hanging (In-Line)	Crimp	Thermoplastic	6	Latch Lock	Female Socket
McGill Microwave Systems ATP06-6S-OMWHT	Contacts Not Included	White	3	Plug	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	Crimp	Thermoplastic	6	Latch Lock	Female Socket
McGill Microwave Systems ATP06-6S-OMGRN	Contacts Not Included	Green	3	Plug	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	Crimp	Thermoplastic	6	Latch Lock	Female Socket
McGill Microwave Systems ATP06-6S-OMYEL	Contacts Not Included	Yellow	3	Plug	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	Crimp	Thermoplastic	6	Latch Lock	Female Socket
McGill Microwave Systems ATP06-6S-OMBLK	Contacts Not Included	Black	3	Plug	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	Crimp	Thermoplastic	6	Latch Lock	Female Socket
McGill Microwave Systems ATP06-6S-OMBRN	Contacts Not Included	Brown	3	Plug	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	Crimp	Thermoplastic	6	Latch Lock	Female Socket
McGill Microwave Systems ATP06-6S-EC01BK	Contacts Not Included	Black	3	Plug	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	Crimp	Thermoplastic	6	Latch Lock	Female Socket
McGill Microwave Systems ATP06-6S-MM01	Contacts Not Included	Gray	3	Plug	Cap (Cover) Sealed	125 °C	-55 °C	Free Hanging (In-Line)	Crimp	Thermoplastic	6	Latch Lock	Female Socket
