Description
General part information
207945

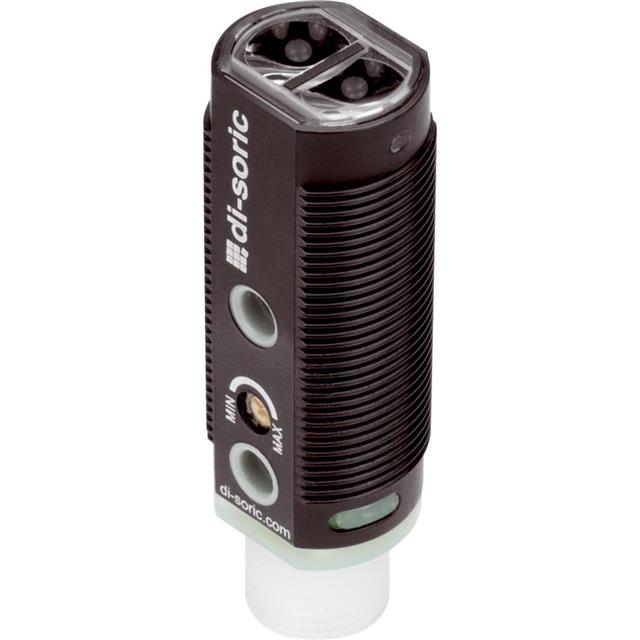

Diffuse Optical Sensor 15.748" (400mm) NPN-NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | 207945 |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 880 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NO, NPN-NC |
| Sensing Distance | 15.748 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
