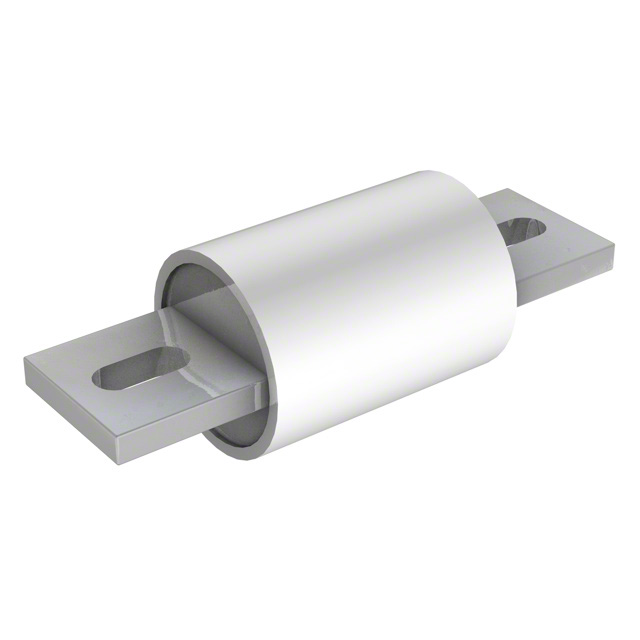

FWJ-600A
ActiveEaton - Electronics Division
600AMP 1000V AC SEMICONDUCTOR FUSE
FWJ-600A
ActiveEaton - Electronics Division
600AMP 1000V AC SEMICONDUCTOR FUSE
Description
General part information
FWJ-600A
600A 1 kVAC 800 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FWJ-600A |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CE |
| Breaking Capacity (AC) | 25 kA |
| Breaking Capacity (DC) | 50 kA |
| Current Rating | 600 A |
| Fuse Type | Cartridge |
| Melting I²t | 61000 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 2.5 in |
| Size / Dimension Length | 7.201 in |
| Voltage Rating - AC | 1 kVAC |
| Voltage Rating - DC | 800 V |
