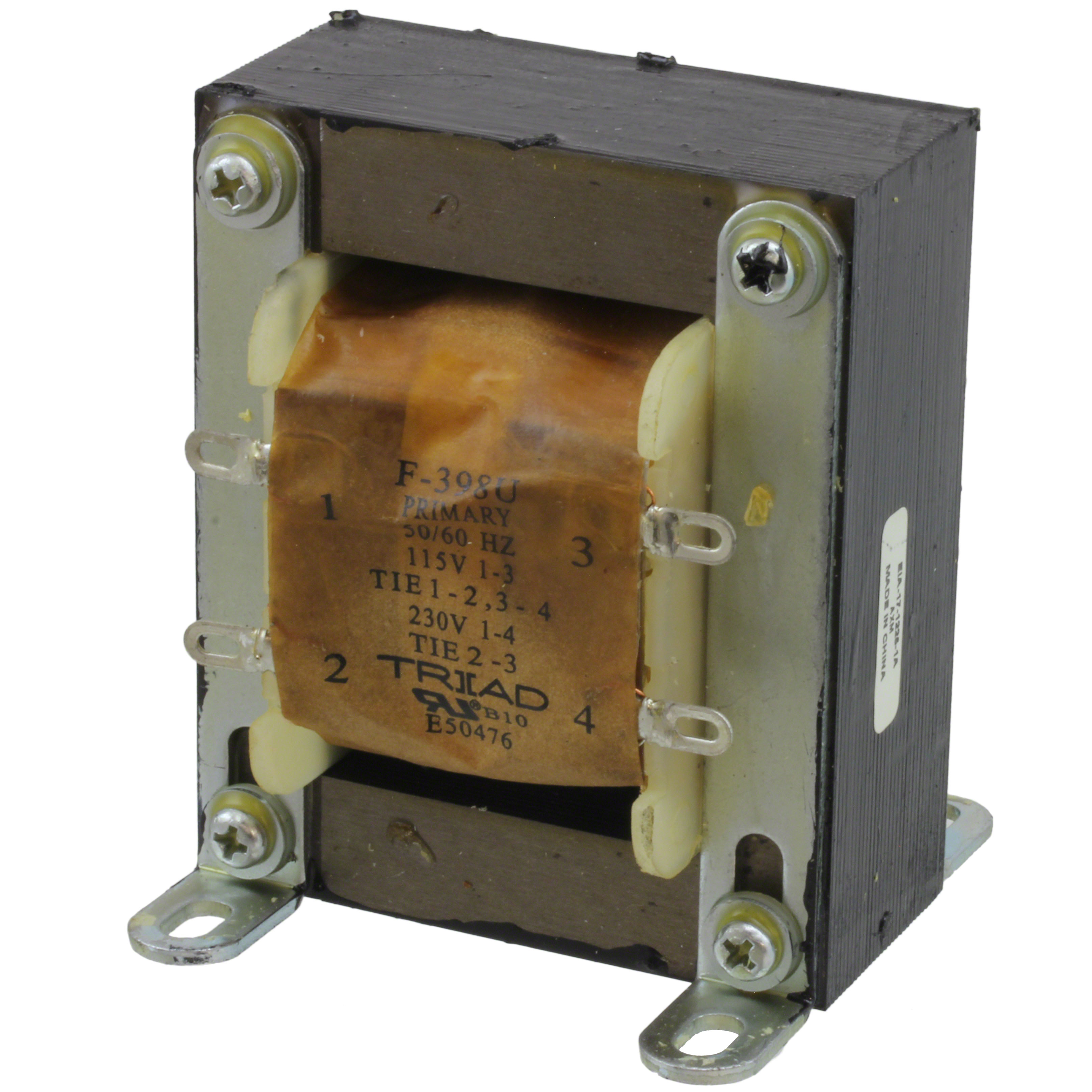

F-398U
ActiveTriad Magnetics
CHASSIS MOUNT TRANSFORMER, CONTROL, 1 X 230V, 2 X 115V, 2 X 12V, 72 VA
F-398U
ActiveTriad Magnetics
CHASSIS MOUNT TRANSFORMER, CONTROL, 1 X 230V, 2 X 115V, 2 X 12V, 72 VA
Description
General part information
F-398U
CHASSIS MOUNT TRANSFORMER, CONTROL, 1 X 230V, 2 X 115V, 2 X 12V, 72 VA
Technical Specifications
Parameters and characteristics for this part
| Specification | F-398U |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 6 A |
| Current - Output (Max) Series | 3 A |
| Height - Seated (Max) | 86.51 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 72 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 96.82 mm |
| Size / Dimension Width | 71.42 mm |
| Termination Style | Solder Lug |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 12 V |
| Voltage - Secondary (Full Load) (Series) | 24 V |
| Weight | 4.3 lbs |
