Description
General part information

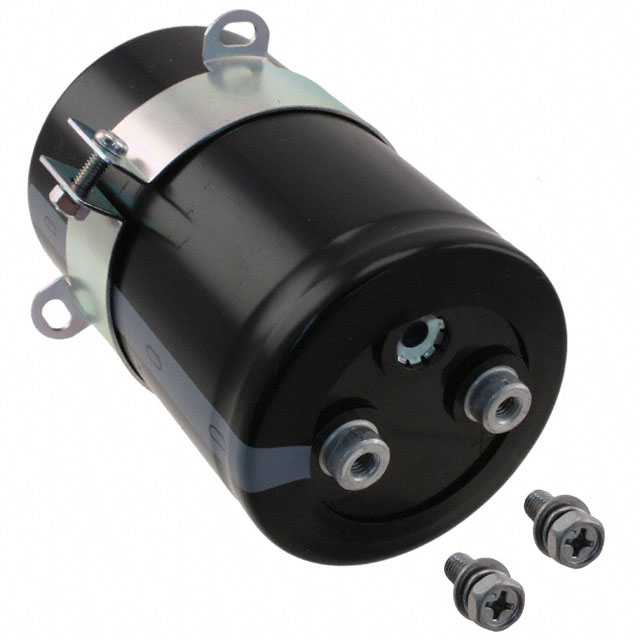

LNC2V472MSEG
4700 µF 350 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNC2V472MSEG |
|---|---|
| Applications | General Purpose |
| Capacitance | 4700 µF |
| Height - Seated (Max) | 4.055 in |
| Lead Spacing | 1.126 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 22.96 A, 16.4 A |
| Size / Dimension Diameter | 2.5 in |
| Tolerance | 20 % |
| Voltage - Rated | 350 V |
