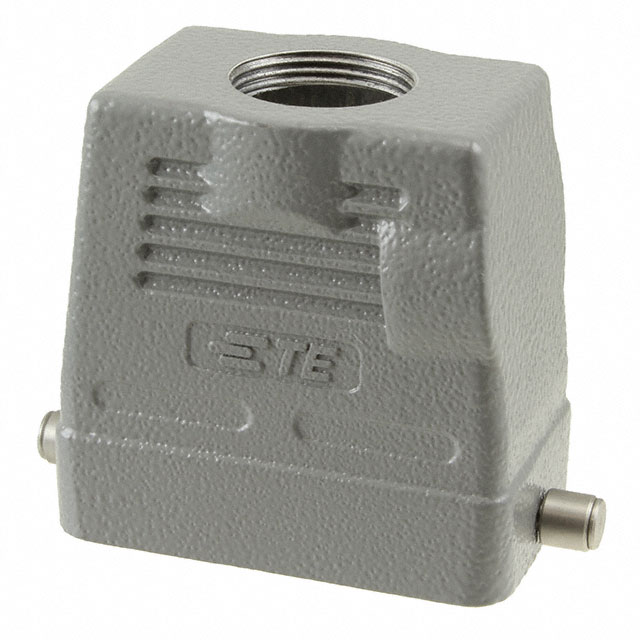

Specification	H10B-TGH-RO-PG21

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	10B
Size / Dimension Height	2.835 in
Size / Dimension Length	2.874 in
Size / Dimension Width	1.693 in
Style	Top Entry
Thread Size	PG21

H10B Series

Part	Lock Location	Housing Material	Thread Size	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Style	Housing Color	Size	Housing Finish	Ingress Protection IP Rating	Ingress Protection Description	Features
TE Connectivity AMP Connectors H10B-TS-RO-M25	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	M25	2.362 in	1.693 in	2.874 in	125 °C	-40 °C	Hood	Side Entry	Gray	10B	Powder Coated	IP65	Dust Tight Water Resistant
TE Connectivity AMP Connectors H10B-SDRH-BO-2PG21	Locking Clip (2) on Hood	Aluminum Alloy Die Cast	PG21	2.976 in	2.244 in	3.701 in	125 °C	-40 °C	Base - Box Mount	Side Entry	Gray	10B	Powder Coated	IP65	Dust Tight Water Resistant	Cover Feed Through
TE Connectivity AMP Connectors H10B-TSBH-PG29	Locking Clip (2) on Hood	Aluminum Alloy Die Cast	PG29	2.835 in	1.693 in	2.874 in	125 °C	-40 °C	Hood	Side Entry	Gray	10B	Powder Coated	IP65	Dust Tight Water Resistant
TE Connectivity AMP Connectors H10B-AG-LB	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast					125 °C	-40 °C	Base - Panel Mount	Bottom Entry	Gray	10B	Powder Coated	IP65	Dust Tight Water Resistant
TE Connectivity AMP Connectors H10B-AG-SL	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast		1.173 in	1.799 in	3.748 in	125 °C	-40 °C	Base - Panel Mount	Bottom Entry	Gray	10B	Powder Coated	IP65	Dust Tight Water Resistant
TE Connectivity AMP Connectors H10BPR-TGHC-M32-EMC-C	Screw Locks on Hood	Aluminum Alloy Die Cast	M32	2.756 in	2.094 in	4.331 in	125 °C	-40 °C	Hood	Top Entry	Black	H10B	Powder Coated	IP68	Dust Tight Waterproof	Corrosion Resistant EMC Resistant
TE Connectivity AMP Connectors H10B-SDRH-LB-2M32	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	M32	2.976 in	2.244 in	3.701 in	125 °C	-40 °C	Base - Box Mount	Side Entry	Gray	10B	Powder Coated	IP65	Dust Tight Water Resistant	Cover Feed Through
TE Connectivity AMP Connectors H10B-TG-RO-M25	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	M25	2.362 in	1.693 in	2.874 in	125 °C	-40 °C	Hood	Top Entry	Gray	10B	Powder Coated	IP65	Dust Tight Water Resistant
TE Connectivity AMP Connectors H10B-TG-PG16	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast	PG16	2.362 in	1.693 in	2.874 in	125 °C	-40 °C	Hood	Top Entry	Gray	10B	Powder Coated	IP65	Dust Tight Water Resistant
TE Connectivity AMP Connectors H10B-SDR-LB-PG16	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	PG16	2.386 in	2.047 in	3.701 in	125 °C	-40 °C	Base - Box Mount	Side Entry	Gray	10B	Powder Coated	IP65	Dust Tight Water Resistant	Cover
