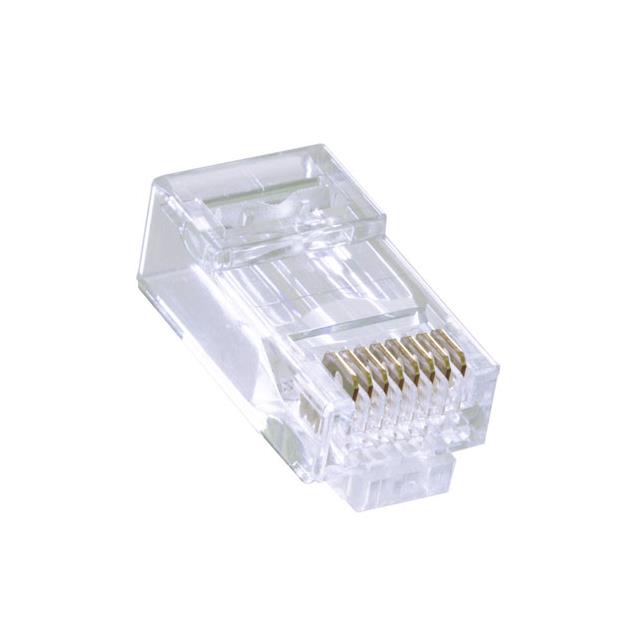

TDPTC5E
ActivePasternack
PULL THROUGH RJ45 PLUG CAT5E UNS
TDPTC5E
ActivePasternack
PULL THROUGH RJ45 PLUG CAT5E UNS
Description
General part information
TDPTC5E
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat5e IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | TDPTC5E |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Connector Type | Plug, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating | 2 A |
| Housing Material | PC, Polycarbonate |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat5e |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 250 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
