Description
General part information
KITLGPWRBOM010TOBO1

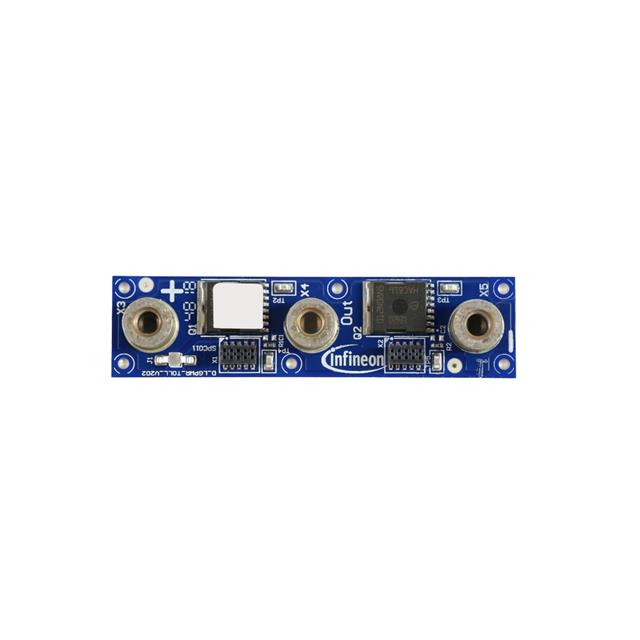

This kit power board module utilizing the OptiMOS™ 5 power MOSFET 100 V inTOLL packagerepresents the power building block of theLVD scalable power demo board platform. It serves as a single half-bridge with power and gate drive interconnections, enabling easy buildup of any half-bridge-based power topology. Variations of the power board employing Infineon’s power MOSFET familyOptiMOS™in the D2PAK, D2PAK-7 and the TO-Leadless packages demonstrate power MOSFET performance in terms of parallelization and thermal behavior. Variations of the power boards:
Technical Specifications
Parameters and characteristics for this part
| Specification | KITLGPWRBOM010TOBO1 |
|---|---|
| Contents | Board |
| Embedded | Yes, MCU |
| Function | MOSFET |
| Secondary Attributes | On-Board Test Points |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | IPT020N10N5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
