MPB01-1C54-SB-CAP-R-D
ActiveSame Sky (Formerly CUI Devices)
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 0.014A/28VDC; ON-(ON); 500MΩ
MPB01-1C54-SB-CAP-R-D
ActiveSame Sky (Formerly CUI Devices)
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 0.014A/28VDC; ON-(ON); 500MΩ
Description
General part information
MPB01-1C54-SB-CAP-R-D

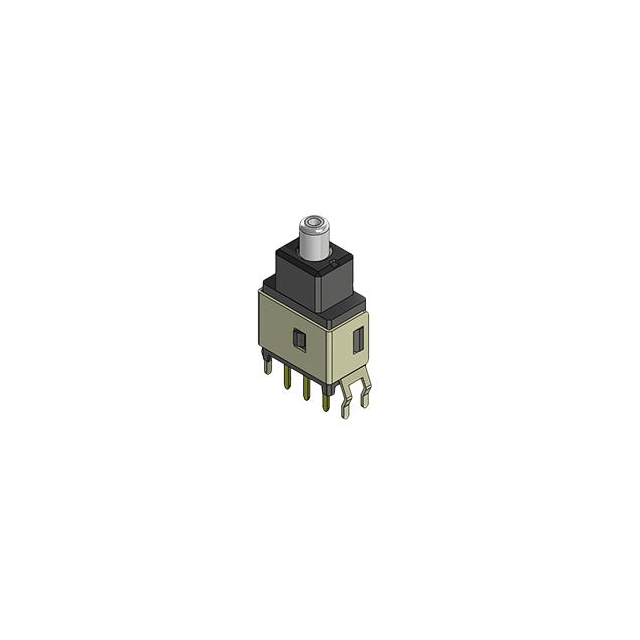

Pushbutton Switch SPDT Standard Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | MPB01-1C54-SB-CAP-R-D |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Current Rating | 14 mA |
| Electrical Life (Cycles) | 20000 |
| Mechanical Life (Cycles) | 20000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - DC | 28 V |
