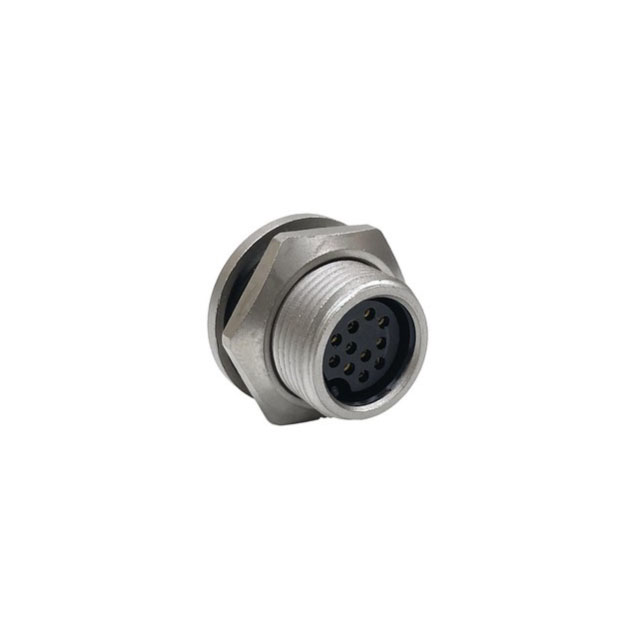

SF4281-11SG-3ES
ActiveSWITCHCRAFT/CONXALL
SHIELDED MULTI-CON-X CONNECTORS,
SF4281-11SG-3ES
ActiveSWITCHCRAFT/CONXALL
SHIELDED MULTI-CON-X CONNECTORS,
Description
General part information
SF4281-11SG-3ES
11 Position Circular Connector Receptacle, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SF4281-11SG-3ES |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30 µin |
| Contact Material | Copper Alloy |
| Current Rating | 5.6 A |
| Fastening Type | Threaded |
| Features | Cap (Cover), Ground |
| Ingress Protection Description | Waterproof, Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP68, IP66 |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 11 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shielding | Shielded |
| Termination | Solder |
