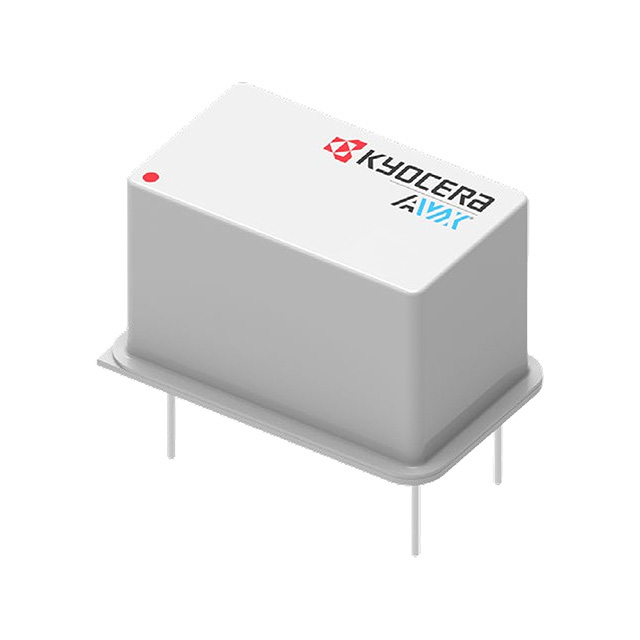

KLNANTL10MEBECAB
ActiveKYOCERA AVX
10MHZ 14 PIN DIP TH SINE OUTPUT
KLNANTL10MEBECAB
ActiveKYOCERA AVX
10MHZ 14 PIN DIP TH SINE OUTPUT
Description
General part information
KLNANTL10MEBECAB
10 MHz VCOCXO Sine Wave Oscillator 5V Amplitude Control 14-DIP Module, 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | KLNANTL10MEBECAB |
|---|---|
| Absolute Pull Range (Maximum) | 1 ppm |
| Absolute Pull Range (Minimum) | -1 ppm |
| Base Resonator | Crystal |
| Frequency | 10 MHz |
| Frequency Stability | 50 ppb |
| Function | Amplitude Control |
| Height - Seated (Max) | 0.512 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Sine Wave |
| Package Leads | 4 Leads |
| Package Name | 14-DIP Module, 14-DIP |
| Size / Dimension Length | 0.795 in |
| Size / Dimension Width | 0.496 in |
| Type | VCOCXO |
| Voltage - Supply | 5 VDC |
