2311788-5
ActiveTE Connectivity AMP Connectors

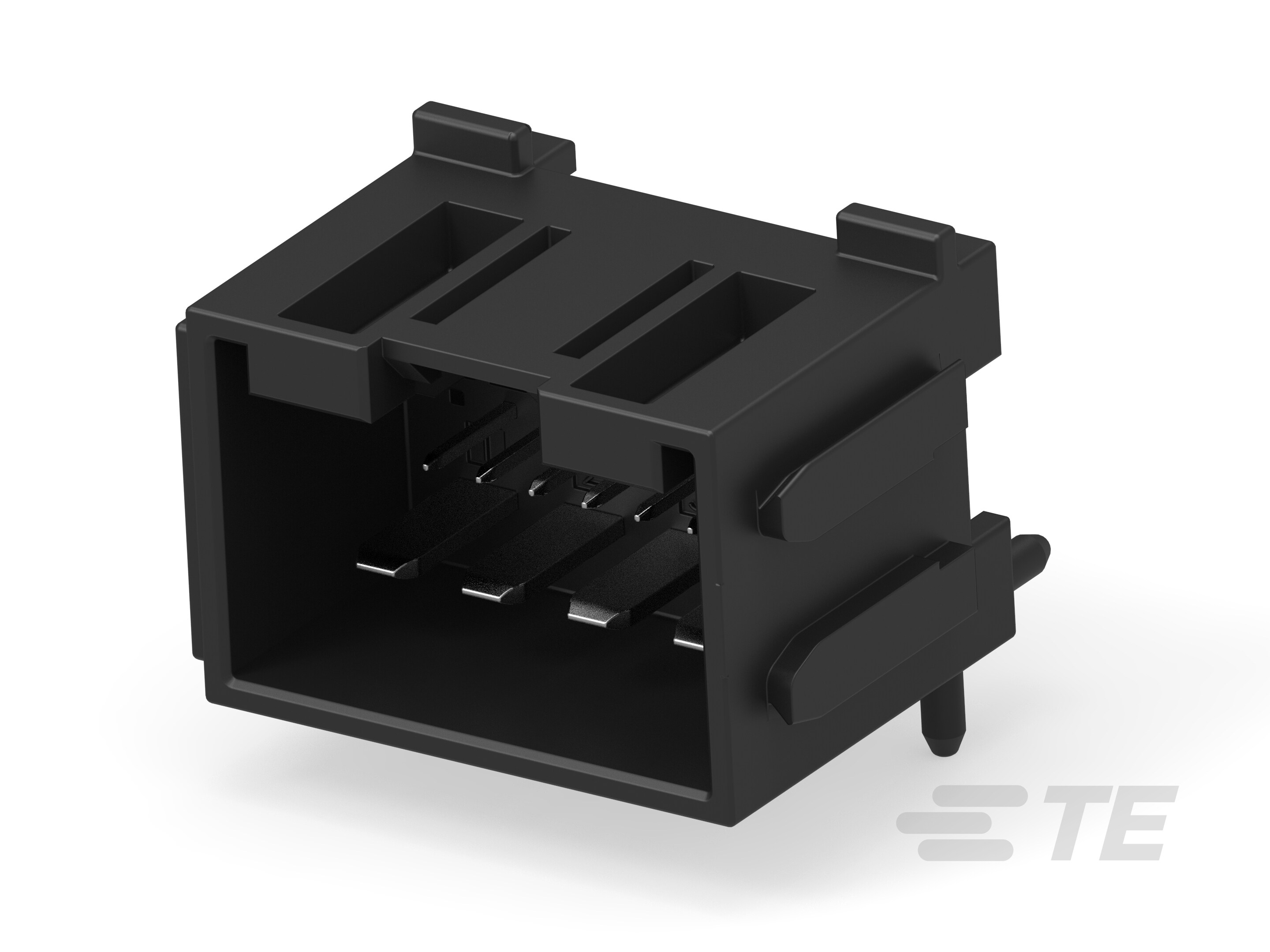

10POS,HYBRID,HDR ASSY,90DEG,SLDR
2311788-5
ActiveTE Connectivity AMP Connectors
10POS,HYBRID,HDR ASSY,90DEG,SLDR
Description
General part information
2311788-5
Horizontal, Wire-to-Board, 12 Position, 2 Rows, 2.5mm / 5mm [.098in / .196in] Centerline, Tin (Sn), Printed Circuit Board, Power & Signal, Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 2311788-5 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Current Rating | 16 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
