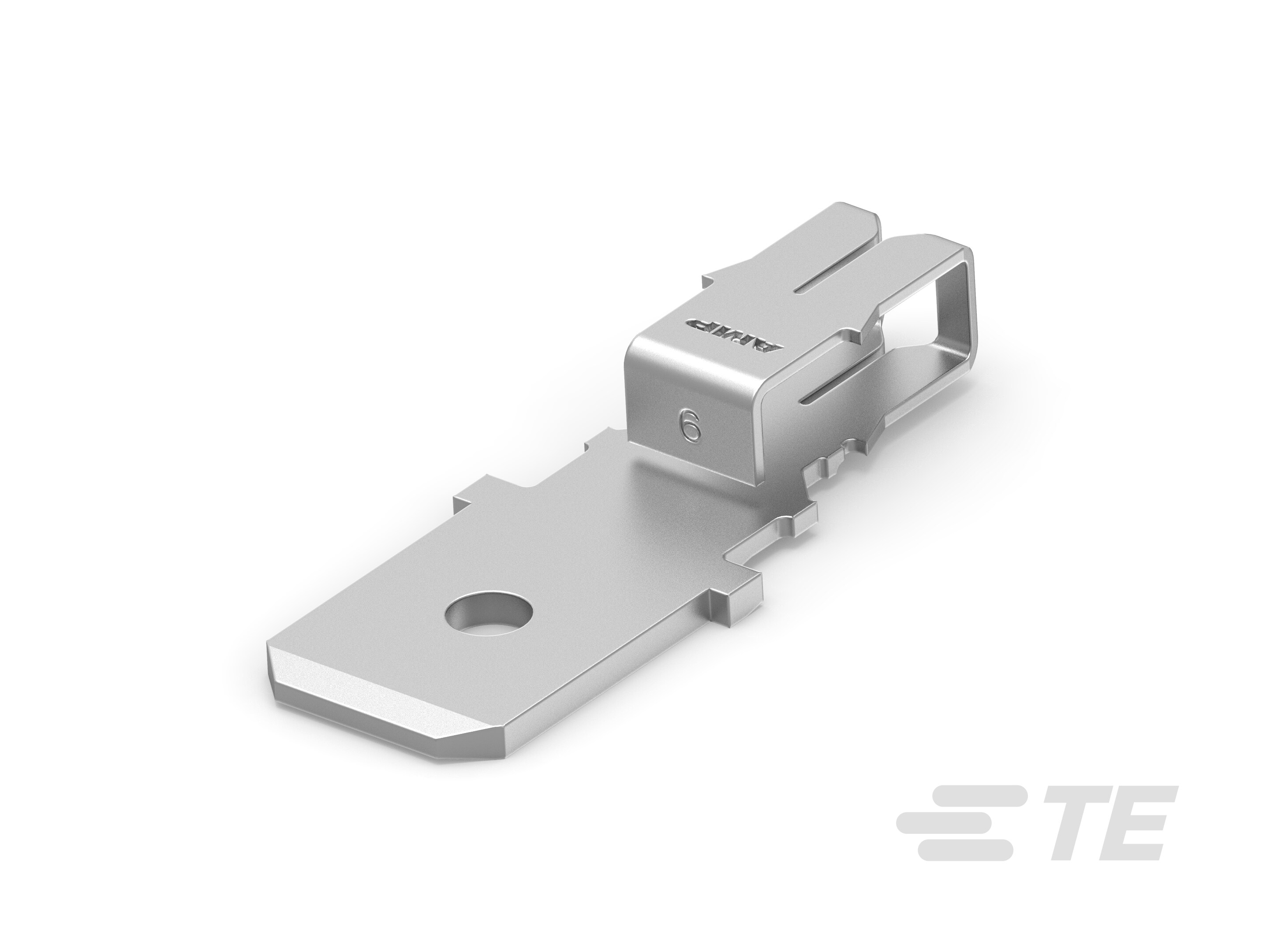

63607-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 24-28AWG QC 0.250
63607-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 24-28AWG QC 0.250
Description
General part information
MAG-MATE 300 Series
Tab, 6.35 mm [.25 in] Tab Width, .32 – .5 mm Magnet Wire, 28 – 24 AWG Magnet Wire, Insulation Displacement (IDC), MAG-MATE 300, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 63607-1 |
|---|---|
| Features | QC .250 |
| Size | 2 |
| Style | 300 |
| Terminal Type | Box IDC |
| Termination | Quick Connect |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
