EG-2121CA 250.0000M-PHPALX

Active

EPSON

XTAL OSC SO 250.0000MHZ LVPECL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

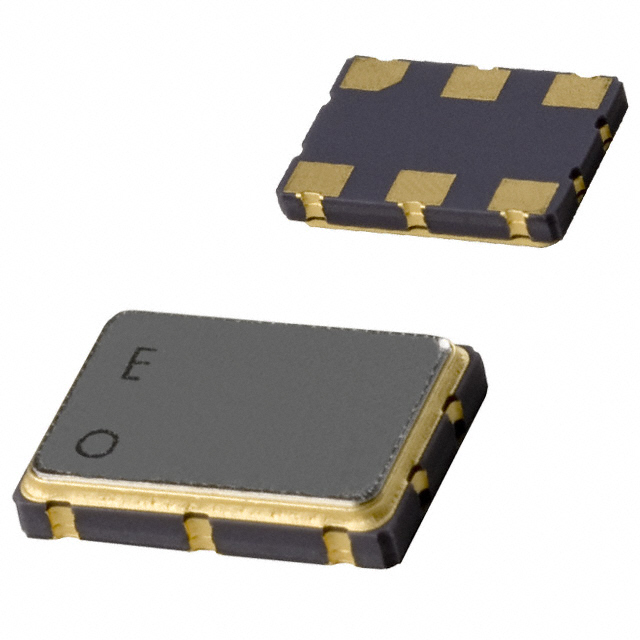

EG-2121CA 250.0000M-PHPALX

Active

EPSON

XTAL OSC SO 250.0000MHZ LVPECL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EG-2121CA 250.0000M-PHPALX	EG-2121CA Series

Base Resonator	Crystal	Crystal
Current - Supply (Disable) (Max) [Max]	20 mA	20 mA
Current - Supply (Max) [Max]	80 mA	30 - 80 mA
Frequency	250 MHz	95 - 350 MHz
Frequency Stability	100 ppm	50 - 100 ppm
Function	Enable/Disable	Enable/Disable
Height - Seated (Max) [Max]	1.4 mm	1.4 mm
Height - Seated (Max) [Max]	0.055 in	0.055 in
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-5 - 0 °C
Output	LVPECL	LVPECL, LVDS
Package / Case	6-SMD, No Lead	6-SMD, No Lead
Size / Dimension [x]	7 mm	7 mm
Size / Dimension [x]	0.276 "	0.276 "
Size / Dimension [y]	5 mm	5 mm
Size / Dimension [y]	0.197 "	0.197 "
Supplier Device Package	-	6-SMD (7x5)
Type	SO (SAW)	SO (SAW)
Voltage - Supply	2.5 V	2.5 V

EG-2121CA Series

XTAL OSC SO 150.0000MHZ LVPECL

Part	Function	Output	Base Resonator	Frequency	Mounting Type	Package / Case	Current - Supply (Disable) (Max) [Max]	Frequency Stability	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Supply	Current - Supply (Max) [Max]
EPSON EG-2121CA 150.0000M-PHPALX	Enable/Disable	LVPECL	Crystal	150 MHz	Surface Mount	6-SMD, No Lead	20 mA	100 ppm	1.4 mm	0.055 in	70 °C	0 °C	7 mm	5 mm	0.276 "	0.197 "	SO (SAW)	2.5 V	80 mA
EPSON EG-2121CA 200.0000M-LHPALX	Enable/Disable	LVDS	Crystal	200 MHz	Surface Mount	6-SMD, No Lead	20 mA	100 ppm	1.4 mm	0.055 in	70 °C	0 °C	7 mm	5 mm	0.276 "	0.197 "	SO (SAW)	2.5 V	30 mA
EPSON EG-2121CA 150.0000M-LGRNX	Enable/Disable	LVDS	Crystal	150 MHz	Surface Mount	6-SMD, No Lead	20 mA	50 ppm	1.4 mm	0.055 in	85 °C	-5 °C	7 mm	5 mm	0.276 "	0.197 "	SO (SAW)	2.5 V	30 mA
EPSON EG-2121CA 250.0000M-PHPALX	Enable/Disable	LVPECL	Crystal	250 MHz	Surface Mount	6-SMD, No Lead	20 mA	100 ppm	1.4 mm	0.055 in	70 °C	0 °C	7 mm	5 mm	0.276 "	0.197 "	SO (SAW)	2.5 V	80 mA
EPSON EG-2121CA 312.5000M-PHPALX	Enable/Disable	LVPECL	Crystal	312.5 MHz	Surface Mount	6-SMD, No Lead	20 mA	100 ppm	1.4 mm	0.055 in	70 °C	0 °C	7 mm	5 mm	0.276 "	0.197 "	SO (SAW)	2.5 V	80 mA
EPSON EG-2121CA 155.5200M-PGPAS	Enable/Disable	LVPECL	Crystal	155.52 MHz	Surface Mount	6-SMD, No Lead	20 mA	50 ppm	1.4 mm	0.055 in	70 °C	0 °C	7 mm	5 mm	0.276 "	0.197 "	SO (SAW)	2.5 V	80 mA
EPSON EG-2121CA 150.0000M-LHPALX	Enable/Disable	LVDS	Crystal	150 MHz	Surface Mount	6-SMD, No Lead	20 mA	100 ppm	1.4 mm	0.055 in	70 °C	0 °C	7 mm	5 mm	0.276 "	0.197 "	SO (SAW)	2.5 V	30 mA
EPSON EG-2121CA 98.3040M-PHPNL3	Enable/Disable	LVPECL	Crystal	98.304 MHz	Surface Mount	6-SMD, No Lead	20 mA	100 ppm	1.4 mm	0.055 in	70 °C	0 °C	7 mm	5 mm	0.276 "	0.197 "	SO (SAW)	2.5 V	80 mA
EPSON EG-2121CA 250.0000M-LGPALX	Enable/Disable	LVDS	Crystal	250 MHz	Surface Mount	6-SMD, No Lead	20 mA	50 ppm	1.4 mm	0.055 in	70 °C	0 °C	7 mm	5 mm	0.276 "	0.197 "	SO (SAW)	2.5 V	30 mA
EPSON EG-2121CA 95.0000M-DHPAX	Enable/Disable	LVPECL	Crystal	95 MHz	Surface Mount	6-SMD, No Lead	20 mA	100 ppm	1.4 mm	0.055 in	70 °C	0 °C	7 mm	5 mm	0.276 "	0.197 "	SO (SAW)	2.5 V	80 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 8.55

Description

General part information

EG-2121CA Series

250 MHz SO (SAW) LVPECL Oscillator 2.5V Enable/Disable 6-SMD, No Lead
