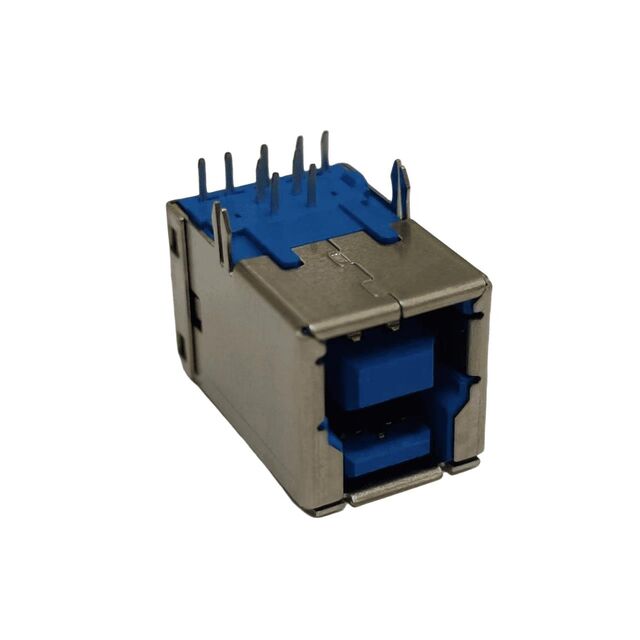

32209L05211
ActiveDLK Electronics
USB 3.0 BF RA DIP TYPE H=13.05
32209L05211
ActiveDLK Electronics
USB 3.0 BF RA DIP TYPE H=13.05
Description
General part information
32209L05211
USB-B (USB TYPE-B) USB 3.0 Receptacle Connector 9 Position Surface Mount, Right Angle; Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 32209L05211 |
|---|---|
| Connector Type | USB-B (USB TYPE-B) |
| Contact Finish | Gold |
| Current Rating | 1.5 A |
| Gender | Receptacle |
| Insulation Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 cycles |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 9 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Shell/Shielding Material | Steel (SUS) |
| Shielding | Shielded |
| Specifications | USB 3.0 |
| Termination | PC Board, Solder |
| Voltage - Rated | 36 V |
| Voltage - Rated Configuration | DC |
