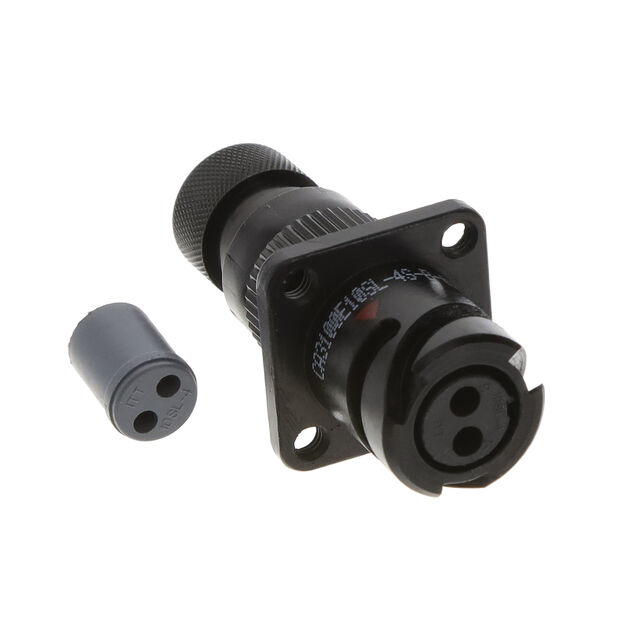

CA3100E10SL-4S-B-02-A232-F0
ActiveITT Cannon, LLC
CONN RCPT W/SKT 2POS
CA3100E10SL-4S-B-02-A232-F0
ActiveITT Cannon, LLC
CONN RCPT W/SKT 2POS
Description
General part information
CA3100E10SL-4S-B-02-A232-F0
2 Position Circular Connector Receptacle Housing Panel Mount Backshell, Cable Clamp
Technical Specifications
Parameters and characteristics for this part
| Specification | CA3100E10SL-4S-B-02-A232-F0 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 S |
| Contact Type | Crimp |
| Fastening Type | Reverse Bayonet Lock |
| Features | Cable Clamp, Backshell |
| Housing Color | Black |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polychloroprene |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Black Zinc Cobalt |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 10SL-4 |
| Shielding | Unshielded |
| Type | For Female Sockets |
